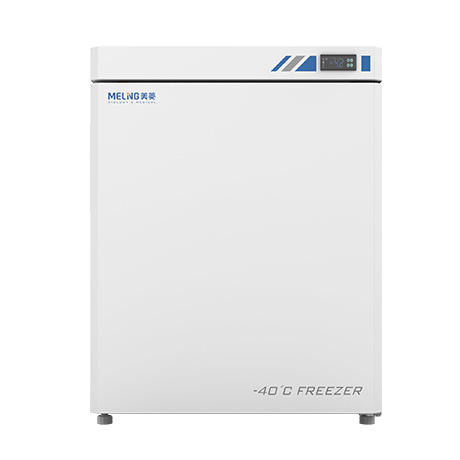

-20~-40℃ Ultra-low Temperature Freezer DW-FL90
Description
Meling -20°C ~-40°C low temperature freezer DW-FL90 is a high quality low temperature freezer with stable performance. It is equipped with international famous refrigeration system, which is high-efficiency and environmental friendly. And the condenser is designed perfectly for temperature stability and refrigeration system reliability. This low temp freezer is designed for laboratory and medical grade and best for storage of special materials, blood plasma, vaccine and biological products.
High-efficiency Refrigeration System
The
environmentally friendly Freon-free refrigerant and high-efficiency
enclosed compressor supplied by a famous brand can ensure energy saving
and low noise. The condenser installed on the bottom ensures temperature
stability and system reliability.
High-precision Temperature Control
The
high-precision computerized temperature control system ensures an
adjustable temperature within a range from -20 to -40℃ inside the
cabinet.
Reliable Security System
The
well-developed audible & visual alarm system (sensor failure alarm,
high temperature/low temperature alarm, etc.) makes it safer for
storage. The turn-on delay and stopping interval protection function can
ensure reliability in running;
Human-oriented Design
The invisible door handle can prevent damage during transportation and save space;
The

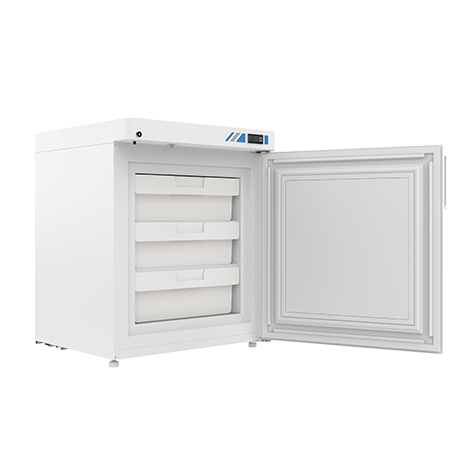

3 drawers are convenient for separate storage of different types of
things and can prevent cross influence among various things.
Features
Small volume occupies small space
The system has the function of digital temperature display and temperature inside the cabinet can be set within a range from -20℃ to -40℃
The
high-precision microcomputer temperature control system and platinum
resistor temperature sensors ensure more precise temperature control
The
compressor supplied by an international famous brand and EBM fan is
energy-saving and environmentally friendly The refrigerating circuit
with proprietary intellectual property rights ensures high efficiency
and stability
3 drawers can be used for storage based on classification.
The
two-layer thermal insulating foamed door can prevent loss of
refrigerating capacity in an effective way The cabinet is made from
CFC-free polyurethane material, which can improve its heat insulating
performance to a large extent
The well-developed audible & visual alarm system makes it safer for storage The turn-on delay and stopping interval protection function can ensure reliability in running The keyboard lock function can prevent any adjustment of operating parameters without permission The door is equipped with a lock, improving security of sample storage
Specifications
- Cabinet Type
Upright
- Capacity (Effective)
90L
- Compressor
1 pc
- Controller
Microprocessor Controller
- cooling method
Direct Cooling
- Defrost Method
Manual Defrost
- Dimensions External (W*D*H,mm)
700W*669D*854H (mm)
- Dimensions Internal (W*D*H,mm)
- 500W*485D*532H (mm)
- Display
Digital LED Display
- Door (Solid)
1 pc
- Door Lock with key
1 pc
- Drawers with Individual Fix Cooling Shelves
3 ABS drawers
- Insulation Thickness (mm)
100 mm
- Material (External)
Powder Coated Material (PCM)
- Material (Interior)
Aluminum plate with spraying
- Model
DW-FL90
- Power (Input)
370W
- Power Consumption (KWh/24h)
1.69
- Power Supply (Voltage)
220-240V, 50 Hz, single phase
- Rated Current (A)
1.68
- Rated Power (W)
200W
- Refrigerant
R290, CFC-Free
- Status Alarm conditions
Visual & Audio
High/low temperature alarm, sensor failure alarm, door ajar alarm- Status Climatic
N
- Temp Display Resolution
0.1℃
- Temp.Range(°C)
-20C ~ -40C
- Temperature (Ambient)
16C ~ 32C
- Test Port (Access)
1 pc (diameter: 25mm)
- Weight (Net/Gross)
54/60 (Kg)
- Wheels (Caster)
2 pc + 2 Leveling Feet
