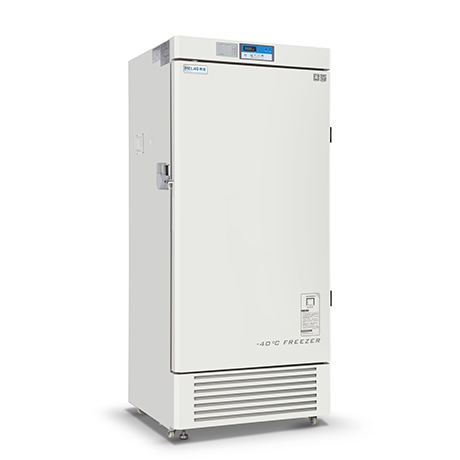

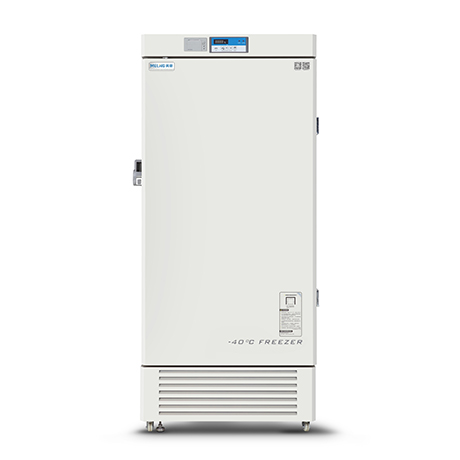

-20°C~-40°C Low Temperature Medical Freezer DW-FL439
Description
Meling -20°C~-40°C low temperature freezer DW-FL439 is a brand new low temp freezer with strong cooling feature. The high-precision temperature control system enables you to set the temperature in the range of -20°C-40°C freely. And you can fully control the temperature performance and operation status. The medical freezer is designed with Fluorine-free refrigerant, which is environmentally friendly.
Refrigeration System:
Fluorine-free refrigerant, international brand compressor, and EBM fan, ensures fast cooling and energy-saving.
Temperature Control System
High-precision
microcomputer temperature control system with build-in control/alarm
sensors for High/low temperature, ambient temperature and evaporator
temperature etc. ensuring the safe and stable running.
Energy Saving and Environmental Protection
Equipped
with DC/DC power management module which greatly improved the
energy-saving efficiency; high precision voltage control ensures the
stable performance for the whole machine. Less redundant heat to
eliminate the overheating safety hazard.
Features
High-quality steel plate structure, anti-corrosion phosphating spray, ABS drawers Low noise design, creating a comfortable working environment
High-precision microcomputer temperature control system with build-in control/alarm sensors for High/low temperature, ambient temperature and evaporator temperature etc. ensuring the safe and stable running 1 inch high brightness digital temperature display with 0.1℃display precision; the temperature can be set freely within the range of -20℃~-40℃
Equipped with SECOP high-efficiency compressor and international EBM fan, ensuring energy saving and silent running
Perfect audible and visual alarm system makes it safer for storage.
Equipped with alarm functions including high/low temperature alarm, high ambient alarm, sensor failure alarm, door opening alarm, power failure alarm, etc. Buzzer alarm for the door opening more than 1 minute, alarm automatically muted when the door is closed Specially equipped with external door handle and padlock to prevent unauthorized opening
The interior is equipped with 7 layers of 14 ABS drawers, 2 for each layer, which is convenient for object storage
Standard 485 port, remote alarm port 2 leveling feet located at the front bottom, 4 castors for the front and back
Specifications
- Battery Back-up for Alarm System
1 pc
- Cabinet Type
Upright
- Capacity (Effective)
439L
- Compressor
1 pc
- Controller system
High precision microcomputer temperature control system, direct cooling , 1 inch digital temperature display
- cooling method
Direct Cooling
- Data Logging/ Interval/ Recording Time
USB/ Record every 10 min/ 2 years
- Defrost Mode
Manual defrost
- Digital Display
High-Brightness LED Digital Display to 0.1C
- Dimensions Door (W*D*H,mm)
850W×90D×1478H (mm)
- Dimensions External (W*D*H,mm)
850W×740D×1935H (mm)
- Dimensions Internal (W*D*H,mm)
650W×548D×1304H (mm)
- Door Lock (External)
Ergonomics padlock design
- Door Lock with key
1 pc
- Door Seal
High Performance Seal Gasket
- Humidity (Ambient)
20%-80%
- Insulation Thickness (mm)
CFC-Free Polyurethane Foam (thickness: 100mm)
- Material (External)
Carbon steel spraying
- Material (Interior)
Stainless steel
- Model
DW-FL439
- Optional Accessories
Chart recorder, Temp. printer
- Power (Input)
770 W
- Power Consumption (KWh/24h)
4.68
- Power Supply (Voltage)
220V-240V, 50/60Hz, Single phase
- Pressure Reducing Valve
1 pc
- Rated Current (A)
3.51
- Rated Power (W)
480W
- Refrigerant
CFC free, R507/320g
- Refrigeration system
SECOP compressor + Germany EBM fan copper finned condenser
- RS485 and Remote Alarm Contact
1 pc each
- Shelves/Drawers
14 ABS drawers
- Status Alarm conditions
Visual & Audio
High/low temperature alarm, high ambient alarm, sensor failure alarm, door open alarm, communication failure alarm, low battery alarm, power failure alarm.- Status Climatic
N
- Temp Display Resolution
0.1℃
- Temp.Range(°C)
-20C to -40C
- Temperature (Ambient)
16C to 32C
- Temperature recording output
Standard USB built-in data logger
- Test Port (Access)
1 as standard (diameter:25mm)
- Weight (Net/Gross)
175/200 (Kg)
- Wheels (Caster)
4 castors and 2 leveling feet
