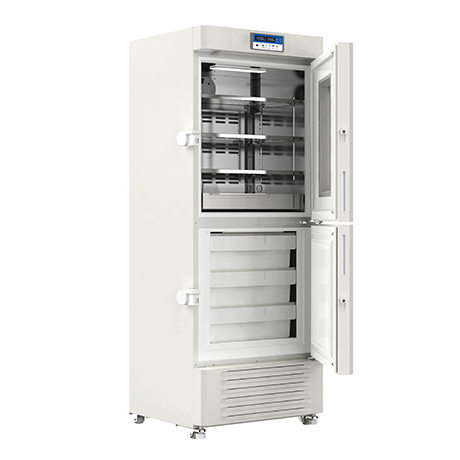

2℃~8℃/-10℃~ -26℃ Medical Refrigerator & Freezer YCD-EL289
Description
Meling 2℃~8℃/-10℃~-26℃ combination refrigerator freezer YCD-EL289 is designed with separate control of refrigeration and freezing. It comes with two compressors and separate control of upper refrigeration chamber and lower freezer chamber. This fridge freezer combo adopts Freon-free refrigeration, which is environmentally friendly and energy-saving. And it comes with updated thermal insulation with CFC-free polyurethane foam technology and thicker insulation layer. The high-precision computerized temperature control helps you to set the upper temperature in a range of 2℃~8℃ and lower temperature in a range of -10℃~-26℃. Meling 2℃~8℃/-10℃~-26℃ Medical Refrigerator & Freezer YCD-EL289 is specially designed for plasma, reagent and other medical and laboratory materials storage.
High-precision Temperature Control System
The
digital temperature and humidity are displayed independently, and
operating status can be viewed and checked clearly. You are able to set
the high temperature or low temperature alarm points on the medical
grade refrigerator freezer freely based on your needs. And you can set
the upper temperature in a range of 2℃~8℃ and lower temperature in a
range of -10℃~-26℃.
High-efficiency Refrigerating System
This medical refrigerator & freezer is equipped with CFC free refrigerant
and high-efficiency compressor, ensuring rapid cooling, energy-saving
and high efficiency. It has two compressor and separately controls the
upper refrigeration chamber and lower freezing chamber. With polyurethane (CFC-Free) foaming technology and thicker insulation layer, it can
ensure good insulation effect.
Comprehensive Security System
This
medical refrigerator and freezer has 8 kinds of audible and visual
alarm functions, including high\low temperature alarm, high ambient
temperature alarm, sensor failure alarm, low battery alarm,
communication failure (USB) data download failure alarm, door opening
alarm, data logging function not enabled alarm, and power failure alarm,
which ensure safer sample storage.
Features
Combination refrigerator freezer with upper 2°C ~ -8°C and lower-10°C~-26℃
Electronic temperature control for high-precision temperature and constant temperature
Separate cooling type with upper fan direct cooling and lower direct cooling
With 2 compressors and separate control of upper refrigeration chamber and lower freezing chamber
Digital temperature display for precisely control temperature and clearly monitor operating status
Equipped with stainless steel inner material and three layers stainless steel clapboard
Equipped with sheet metal refrigerated drawers and acrylic plates
Inter-room independent door lock and independent external padlock to ensure safe sample storage
Electric heating and LOW-E, double glazing, good anti-condensation effect
LED lighting in the cabinet of the combination refrigerator & freezer for easy operation
Standard with Build-in USB data-logger for temperature data recording
Three-layer ABS drawer in the freezer compartment;
2 adjustment feet at the bottom, 4 universal wheels caster at the front and back, easy to move and place
Specifications
- Battery Back-up for Alarm System
1 pc
- Cabinet Type
Upright
- Capacity (Effective)
289L; Ref:189L, Fre:100L
- Compressor
2pcs
- Compressor Brand
HuaYi
- Controller
Microprocessor Controller
- cooling method
Ref: Forced Air Cooling
Fre: Direct Cooling
- Data Logging/ Interval/ Recording Time
USB/ Record every 10 min/ 2 years
- Defrost Mode
Ref: Automatic, Fre: Manual
- Dimensions External (W*D*H,mm)
745W*650D*1845H (mm)
- Dimensions Internal (W*D*H,mm)
Ref: 600W*510D*710H (mm)
Fre: 500W*460D*505H (mm)
- Display
High-Brightness LED Digital Display to 0.1C
- Door Lock (External)
2 pcs
- Door Lock with key
2 pcs
- Door with Heater
2 pcs
- Evaportor
Coil evaporator
- Fan Motor
EBM Fan from Germany
- Insulation Thickness (mm)
Ref: 50mm, Fre: 100mm
- Material (External)
Spray cold rolled steel plate
- Material (Interior)
304 Stainless steel
- Model
YCD-EL289
- Power (Input)
345W
- Power Consumption (KWh/24h)
3.11
- Power Supply (Voltage)
220V±10%, 50Hz, Single Phase
- Rated Current (A)
2.23
- Rated Power (W)
295W
- Refrigerant
R134a
- Shelves/Drawers
Ref: 3 Stainless steel storage rack+1 shelf,
Fre: 3 ABS drawers
- Standard Accessories
RS485, Remote Alarm Contact
- Status Alarm conditions
Visual & Audio
high and low temperature alarm, sensor failure alarm, door ajar alarm, Power Failure alarm, high ambient temperature alarm, USB data-logging failure alarm, and low battery alarm- Status Climatic
N
- Temp.Range(°C)
Ref: 2C ~ 8C, Fre: -10C~ -26C
- Temperature (Ambient)
16C to 32C
- Temperature recording output
USB port built-in data-logger
- Test Port (Access)
2 pcs, diameter: 25mm
- Weight (Net/Gross)
140/162 Kg
- Wheel Casters
4 (2 castor with brake) + (2 leveling feet)
