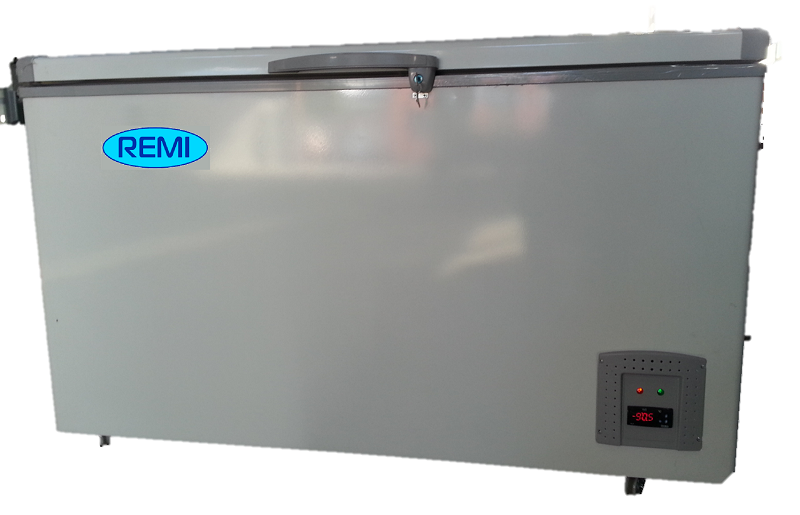

-45°C Low Temperature Freezer Chest Type (DW-45W208)
Description
Temperature Control
■ Microprocessor control, digital display to 0.1°C resolution;
temperature is adjustable from -15°C to -45°C.
Safety Control
■ Power-on delay function, off-cycle protection is to
ensure the security of the compressor.
Alarm System
■ Audible and Visual alarm in two alarming methods:
Buzzer alarming and digital flashing alarming.
■ Alarm conditions included High and Low limit alarm,
sensor error alarm, Power failure Alarm (Optional).
Cooling System
■ Fast cooling system is generated by imported compressor and
EBM fan motor.
■ Outstanding temperature preservation is ensuring by the ultra-
microcellular form insulation.
■ Strong cooling system is generated by copper coil
Evaporator and condensing system.
Ergonomic Design
■ Single stage refrigeration technology & design, strong
Cooling and quick freezing.
■ Double gaskets and extra thickness of Insulation ensure
reliable operation and safety of sample storage..
■ Safety door lock is designed to prevent accidental or
unauthorised access.
■ One basket is installed in the freezer for the convenience of
usage.
■ Casters wheels with lock, is design for easy moving.
Specifications
- (Adjustable) Temp.working range
- -15°C to -45°C (adjustable)
- Alarm conditions
- High & Low alarm, Sensor Error, Power failure alarm(Optional)
- Alarm system
- Audible and Visual alarms
- Cabinet construction
- (External) Powder Coated Steel Sheet
- Cabinet Construction
- (Internal) Stainless Steel Sheet
- Capacity
- 208 litres
- Condenser
- Fan cooling fin type
- Dimension (External)
- 1050W x 670D x 795H(mm)
- Dimension (Internal)
- 842W x 462D x 636H(mm)
- Display & Temp. Setting
- Digital Display to 0.1°C
- Door/Door Lock
- Single Foamed door, top open/ 1 unit of door lock with key
- Evaporator
- Copper coil
- Foam Insulation
- 100 mm thick CFC-free Urethane
- Power consumption
- 4.0KW.h/24h
- Power Input
- 380W
- Power supply
- 220-240 Vac, 50 Hz, Single phase
- Refrigerant
- Mixed CFC FREE Refrigerants
- Standard & Certificate
- ISO13485
- Standard Accessories
- 1 powder coated wire basket
- Temperature Sensor
- NTC
- Weight (Net/Gross)
- 70/75kg
- Wheels
- 4 pcs caster wheels
