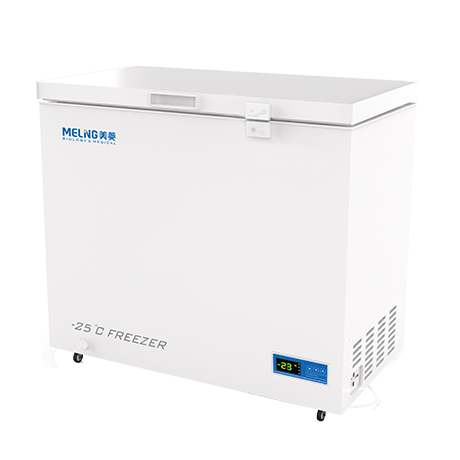

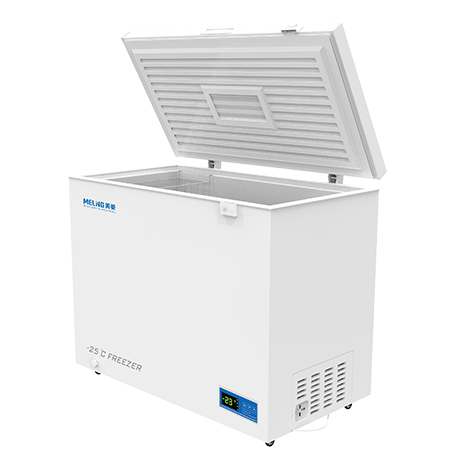

-10°C ~-25°C Low-temperature Medical Freezer (DW-YW226A)
Description
Meling -10°C ~-25°C low temperature freezer is specially designed in medical and laboratory grade. This low temp freezer brings out stable performance in refrigeration and temperature control. And this chest deep freezer provides you with optional capacity in 226L / 358L / 508L to meet different storage needs. It is equipped with environmentally friendly Freon-free refrigerant and high-efficiency compressor, which can ensure energy-saving and fast refrigeration.
Refrigeration System
The
environmentally friendly Freon-free refrigerant and high-efficiency
enclosed compressor supplied by a famous brand can ensure energy saving
and low noise. The condenser installed on the bottom ensures temperature
stability and system reliability.
Temperature Control
The
high-precision computerized temperature control system ensures an
adjustable temperature within a range from -10 to -25℃ inside the
cabinet.
Security System
The
well-developed audible & visual alarm system (sensor failure alarm,
door opening alarm, high temperature/low temperature alarm, etc.) makes
it safer for storage; The turn-on delay and stopping interval
protection function can ensure reliability in running.
Human-oriented
The
airbag-type built-in door gasket is dust-proof and easy to clean. The
design of upward door opening and the balancing door hinge facilitate
door opening; the built-in shelves are convenient for placement of
things.
Features
The digital temperature display can indicate operating status clearly
The
high-precision microcomputer temperature control system enables users
to set the temperature inside the cabinet within a range from -10℃ to
-25℃.
The well-developed audible & visual alarm system makes it safer for storage
The
turn-on delay and stopping interval protection function can ensure
reliability in running; The door is equipped with a lock, improving
security of sample storage.
The environmentally friendly Freon-free
refrigerant and high-efficiency enclosed compressor supplied by a famous
brand can ensure energy saving and low noise. The condenser installed
on the bottom ensures temperature stability and system reliability
The CFC-free polyurethane foam technology and the thicker insulating layer can improve the effect of thermal insulation
Specifications
- Baskets
- 1 unit steel wire Coated basket
- Cabinet Construction (External)
- Powder coated material (PCM)
- Cabinet Construction (Internal)
- Embossed Aluminium Sheet
- Cabinet Type
Chest Type
- Capacity (Effective)
- 226 litres
- Compressor
1 pc
- Controls panel
- Touch-pad icon based Microprocessor control
- cooling method
Direct Cooling
- Defrost Mode
Manual
- Dimension (Overall)
- 1115W*610D*890H (mm)
- Dimension Chamber
- 954W*410D*703H (mm)
- Door
- Single lid door
- Door Lock with key
- 1 unit of door lock
- Evaportor
D-form copper tube
- Foam Insulation
- 70 mm thick CFC-free Polyurethane
- International Certificate
- ISO 9001, ISO 14001, ISO 13485
- Power Consumption (KWh/24h)
1.06
- Power Input
- 150W
- Power Supply
- 220-240 Vac, 50 Hz, Single phase
- Rated Current (A)
0.64
- Rated Power (W)
109W
- Refrigerant
- R290, CFC FREE
- Status Alarm conditions
- Visual & Audio;
High/low temperature alarm, senor error alarm, - Status Climatic
N
- Temp. Setting & Display
- Digital Display to 0.1°C
- Temp.working range
- -10°C to -25°C (adjustable)
- Temperature (Ambient)
16°C - 32°C
- Weight
- 55kg
- Wheels (Caster)
- 4 pcs (2 caster with brake)
