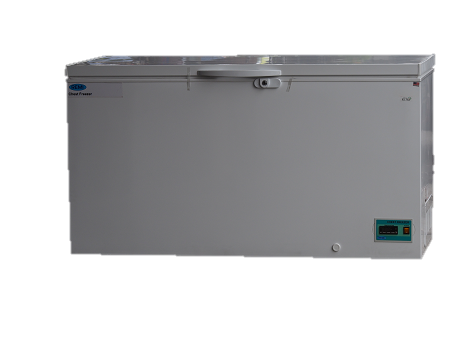

-25°C Low Temperature Freezer Chest Type (RCF-500)
Description
Temperature Control
~Microprocessor control, digital display to 0.1C resolution;
temperature is adjustable from -10C to -25C
Ergonomic Design
~Chest Type with Top Loading opening door design.
~Exterior and interior body are constructed of powder coated mild steel board.
~The chest freezers contain the environmental-friendly refrigerant R134A
and CFC-free insulation.
~The built-in lock and key on the casing ensure the safety of sample storage.
~1 or 2 units of baskets are supplied as standard.
~4 caster wheels are equipped for easy moving of the cabinet.
Alarm System
~Audible and Visual alarm in two alarming methods:
Buzzer alarming and digital flashing alarming.
~Alarm conditions included High and Low limit alarm.
Specifications
- Air Circulation
- Conventional
- Alarm conditions
- High & Low alarm
- Alarm system
- Audible and Visual alarms
- Baskets
- 2 units
- Body Construction
- Epoxy Powder Coated Mild Steel
- Capacity
- 540 litres
- Certificate
- ISO13485, MDA Approval Manufacturer
- Compressor Power (HP)
1/2
- Compressor Type
- Reciprocating Hermetic
- Condenser fan motor
- 1 unit
- Defrosting System
Manual Defrost System
- Door type
- Lifting with spring hinges
- Door/Key lock
- 1 each
- External dim
- 1665W x 705D x 865H(mm)
- Insulation
- Polyurethane Foam – Non CFC
- Internal dim
- 1530W x 530D 703H (mm)
- Operating Current (A)
1.34A
- Power Consumption (kWh per 24 hours)
1.93kWh
- Power supply
- 220-240VAC, Single Phase, 50Hz
- Refrigerant
- R134A, CFC FREE
- Refrigeration compressor
- 172 Watts
- Temp. Controller
- Digital Microprocessor
- Temp. setting & display
- Digital Display to 0.1°C
- Temp.working range
- -10°C to -25°C
- Weight
- 78kg
- Wheels
- 6 units caster wheels
