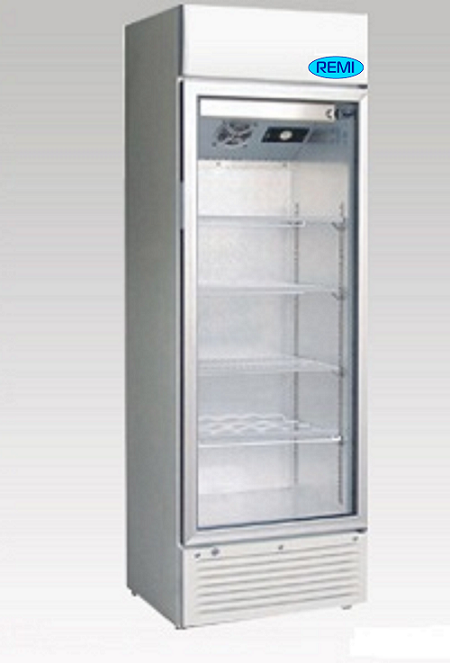

Economy Glass Door Laboratory Chillers (RLC-300)
Description
Temperature Control
■ Microprocessor control with LED temperature display.
■ Forced-Air Circulation system ensuring temperature range of 2°C ~10°C.
■ Digital controller ensures the accurate temperature display.
Safety Control
■ Microprocessor controller can be locked to prevent unauthorized access.
Cooling System
■ High efficient compressor and CFC-FREE refrigerant is used to
have fast cooling effects.
■ Forced-Air circulation system ensuring superior temperature uniformity.
Ergonomic Design
■ Automatic cycle defrost ensure no rise in cabinet temperature
when doing defrosting.
■ The double glass doors give a comprehensive view for the storage samples.
■ Safety door lock (Optional) is designed to prevent accidental or unauthorized access.
■ Heating coil give automatic evaporating off the condensate water.
■ Four caster wheels provide easy moving capability of the cabinet.
■ Built in ELCB circuit breaker.
Optional Accessories
■ Chart recorder for monitoring temperature of products.
■ Temperature logger for monitoring temperature under ISO purposes.
■ Traceable® Refrigerator/Freezer Thermometer is an optional
temperature monitoring system.
Specifications
- Air Circulation
- Forced air circulation fan
- Body construction
- Epoxy coated mild steel
- Capacity
- 300 litres
- Certificate
- ISO 13485, MDA Approval Manufacturer
- Chamber dim
- 500W x 595D x 1105H(mm)
- Compressor power
- 640 Watts; 1/6 hp
- Controls panel
- Touch-pad icon based controls & display
- Cooling capacity
- at 5°C (Btu/hr) 2000Btu/hr
- Door
- 1 Swing out glass door
- Door Lock (Optional)
- 1 unit of door lock with keys
- Indicating lamp
- Fluorescent lamp
- Overall dim
- 590W x 720D x 1720H(mm)
- Power supply
- 240VAC, 50Hz, 1.5A
- Refrigerant
- R134a, CFC FREE
- Refrigeration compressor
- Reciprocating Hermetic seal type
- Shelves
- 4 pcs Epoxy coated Shelves
- Temp. Fluctuation
- ±4.0°C
- Temp. setting & display
- Digital display to 0.1°C
- Temp. working range
- 2°c to 10°C (Fluctuated)
- Weight
- 72kg
