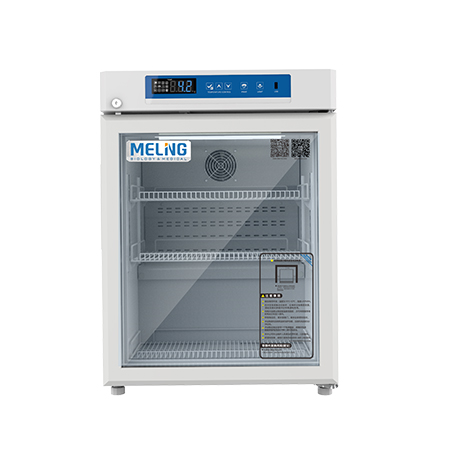

2°C - 8°C Medical Refrigerator (Smart Size) YC-75L
Description
Meling 2℃~8℃ medical refrigerator YC-75L is a smart under-counter medical refrigerator and it is designed with a brand new appearance. This small lab / medical refrigerator comes with double-layer tempered glass door, having the features of anti-condensation and electrical heating. So it can ensure the great thermal insulation performance of the refrigerator. The high-efficiency evaporator and advanced air cooling structure design ensures no worry about the frosting, which can well keep the uniformity and stability of the temperature inside the cabinet. The powerful alarm system with multiple alarms can ensure the safety of storage. The pharmaceutical refrigerator is suitable in hospitals, laboratories, pharmacies, health centers, blood banks, pharmaceutical factories, disease prevention and control centers, medical facilities, and more.
Accurate Control System
This
2℃~8℃ vaccine refrigerator has super high precision temperature control
system, allowing you to set the temperature in the range of 2℃~8℃
freely. And the high brightness digital display has the ability to
display the temperature and humidity precisely. It can ensure the
display accurately in 0.1℃.
Powerful Refrigeration System
YC-75L
medical refrigerator is equipped with environmentally friendly
Freon-free refrigerant and high-efficiency compressor, which can ensure
better cooling performance and temperature uniformity. It performs in
air cooling type with auto-defrost feature.
Security Alarm System
It
has well-developed audible and visual alarm system, including sensor
failure alarm, door opening alarm, high temperature/low temperature
alarm, power failure alarm, etc. makes it safer for storage. The
compressor has turn-on delay protection, ensuring reliable operation.
Humanized Operation Design
We
designed the under counter refrigerator with lock to prevent it from
unauthorized opening. The luxury LED lighting system makes it completely
visible inside the cabinet. The shelves are made of PVC-coated steel
wire, which are easy to clean.
Features
Equipped with China high quality famous brand compressor and Fan motor with patent
With 2~3 high-quality steel wire adjustable shelves to adjust to any height for satisfying different requirements
Design the inner material with HIPS and external material with high-quality structure steel
The electrical heating glass door filled with insert gas performs well in thermal insulation
1 cooling fan inside, working while door is closed, stopped while the door is opened
The CFC-free polyurethane foam insulating layer is environmentally friendly
The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately
Standard with build-in USB data-logger, remote alarm contact and RS485 interface for monitor system
Specifications
- Cabinet Type
Upright
- Capacity (Effective)
- 75L
- Compressor Brand
China famous brand
- Cooling
Air cooling
- Dimensions External (W*D*H,mm)
- 540W*560D*764H (mm)
- Dimensions Internal (W*D*H,mm)
444W*440D*536H (mm)
- Door Lock with key
1 pc
- Fan Motor
China high quality famous brand
- Heated Glass Door
1 pc
- Material (External)
Powder Coated Material (PCM)
- Material (Interior)
Aluminum plate with spraying
- Power (Input)
- 147W
- Power Consumption (KWh/24h)
0.69
- Refrigerant
HCFC-FREE ,R600a
- Shelves (Adjustable)
3 pcs
- Status Alarm conditions
Visual & Audio
High and low temperature alarm, sensor failure alarm, door open alarm, power failure alarm- Status Climatic
N
- Temperature (Ambient)
16C ~ 32C
- Temperature Range
- 2°C - 8°C
- Temperature recording output
Standard with build-in USB data-logger for temperature data recording
- Test Port
1 pc
- Voltage
- 220V / 50Hz
- Weight (Net/Gross)
- 41/44 kg
