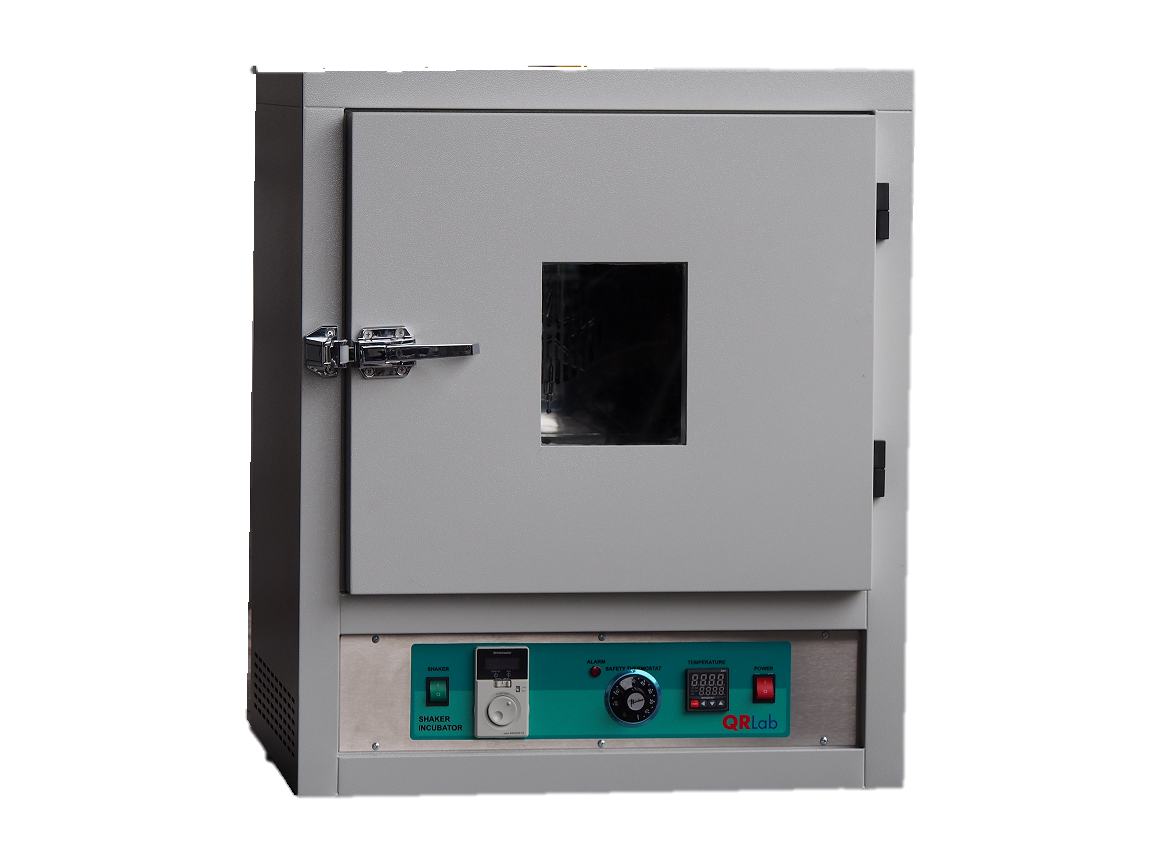

Shaking Incubators (INS-50)
Description
Features
■ Digital PID controller with uniformity of temperature fluctuation less than ±0.5°C.
■ Setting and actual temperature are operate with LED digital display to 0.1°C.
■ Auto diagnostic system ensure the rapid identification and correction if any faulty occur.
■ Off-set function is available for ISO or calibration purpose.
■ Over-temperature are protected with Hi-Limits thermostat which is a safety devices.
■ Memory back-up system protect the set point value after power failure occurred.
■ Electronic control slow start prevent sample spillage when shaker resume shaking from power failure.
■ Shaking speed are control by digital speedometer display to ±1.0 rpm.
■ One standard platform with 250ml flask clamps and one piece of shelf are supplied as standard.
Specifications
- Cabinets construction
- (Interior) Stainless Steel
- Cabinets construction
- (Exterior) Epoxy coated mild steel
- Capacity
- 50 Litres
- Dimensions (External)
- 535W x 545D x 805H (mm)
- Dimensions (Internal)
- 335W x 340D x 450H (mm)
- Dimensions (Platform)
- 352W x 295D (mm)
- Heater
- 300W Nichrome heating element
- Motor
- DC Motor-Brushless, Gearless
- Orbital motion
- 25.4 mm circle
- Power supply
- 240VAC, 50 Hz, 1.5A
- Safety devices
- Over temperature protection
- Shaking accuracy
- ±1.0 rpm
- Shaking speed
- 15 – 250 rpm
- Shelves
- 1 piece shelf
- Speed indicator
- Digital speedometer display to ±1.0 rpm
- Temp. setting & display
- Digital display up to 0.1°C
- Temperature Accuracy
- ±0.1°C
- Temperature Controller
- Digital PID Controller
- Weight
- 40 Kg
- Working Temp. range
- 5°C above ambient to 60°C
