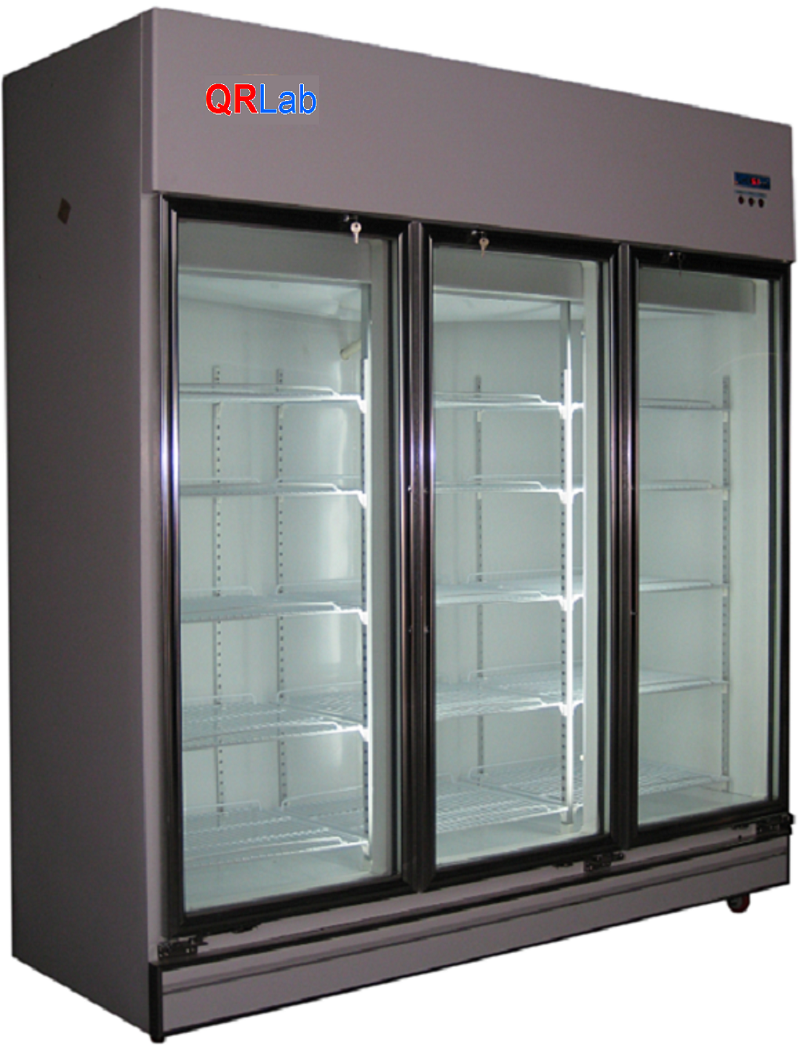

Glass Door Laboratory Refrigerators (QRLR-1600)
Description
Features
■ Special designed for long period of storage for laboratory samples, reagents,
biologicals, pharmaceuticals.
■ Special guided air flow system to optimise the uniformity of temperature
distribution inside the cabinets.
■ Display temperature are mimic the store product which will provide accurate
temperature information.
■ CFC Free refrigerants are using to made environmental friendly.
■ Temperature are control from 2°C to 8°C, factory setting at 4°C.
■ Digital temperature display to 0.1°C.
■ Fluorescent lighting inside cabinet gives day light viewing for storage products.
■ Automatic condensate water removal by heated hot pans and heated glass door.
■ The alarm system (Optional) will alert through buzzer sound or alarm message
if the below conditions occur: Out of range for High and Low alarm setting,
Power failure, Door open more than 5 minutes.
■ High efficient compressor and CFC-FREE refrigerant is used to have fast cooling effects.
■ Automatic cycle defrost ensure no rise in cabinet temperature when doing defrosting.
■ The double glass doors give a comprehensive view for the storage samples.
■ Safety door lock is designed to prevent accidental or unauthorized access
of storage products.
■ Built in ELCB Circuit Breaker.
■ Four caster wheels provide easy moving capability of the cabinet.
■ Remote alarm contact provided as standard for central monitoring alarm system.
Specifications
- Air Circulation
- Force air circulation fan. Special guided air flow system to max uniform temperature distribution
- Alarm conditions
- (Optional) High & Low alarm , Door open, Power failure, Low Battery
- Alarm system
- (Optional) Audible and Visual alarms with battery back-up. With remote alarm contact
- Cabinet construction
- Powder coated mild steel
- Capacity
- 1600 litres
- Compressor power
- 3/4hp
- Controls panel
- Touch-pad icon based controls & display, Key operated power ON/OFF switch
- Cooling capacity
- at 5°C (Btu/hr) 7100
- Defrost
- Automatic cycle defrost
- Dimensions (External)
- 1880W x 825D x 2070H (mm)
- Dimensions (Internal)
- 1770W x 650D x 1430H (mm)
- Door
- 3 heated glass door
- Door Lock
- 3 units door lock with keys
- Foam insulation
- CFC-free polyurethane
- Indicating lamp
- Fluorescent lamp
- Panel construction
- (Top and Bottom ) Stainless Steel
- Rated Load Amps
- 7.3A
- Refrigerant
- R134a, CFC FREE
- Refrigeration compressor
- Reciprocating Hermetic seal type
- Shelves
- 15 pcs Epoxy coated Shelves
- Temp. Setting & Display
- LED Digital display to 0.1°C
- Temp.working range
- 2°c to 8°C (Preset at 4°C)
- Voltage
- 240VAC, 50Hz,
- Weight
- 280 kg
