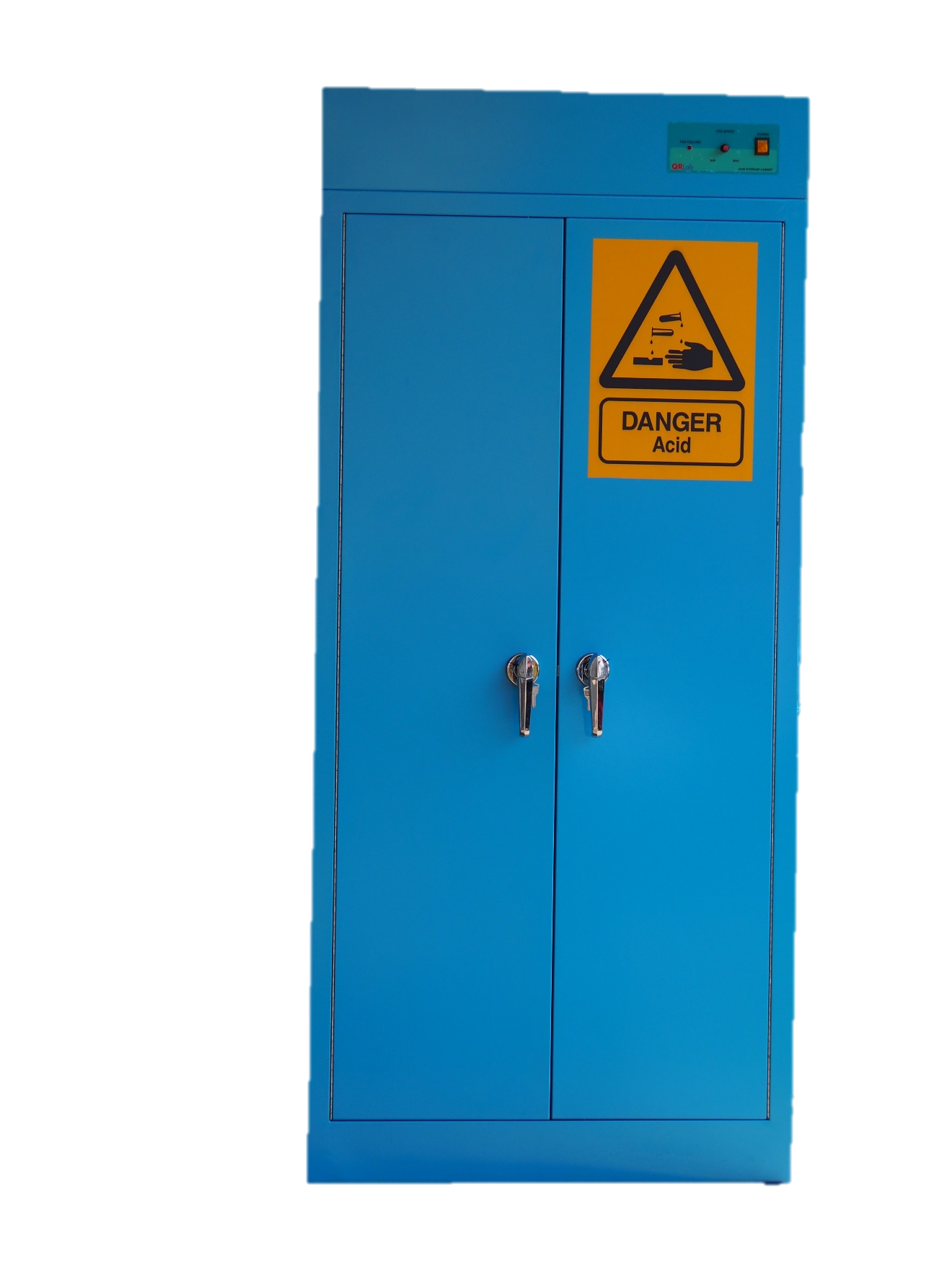

Acid and Corrosive Liquids Storage Cabinets (QRAC-1000V)

Description

Features
■ 18-gauge steel cabinets with double-wall construction, finishing with
  chemical resistant powder coated paint.
■ Raised leak-proof door sill.
■ Dual vents at both sides.
■ Tree point latching doors with lock and handle.
■ Full length piano hinges.
■ Adjustable levelling feet.
■ Reinforced Polypropylene (PP) spill catcher tray shelves supplied as standard.
■ Tray shelves can be easily cleaned and removed.
■ Reinforced adjustable tray shelves are able to support up to 350Ibs (160kg)
  load each.

Storage Requirement

Oxidizing Acids
All oxidizing acids are highly reactive with most substances and with each other.
Examples: Nitric, sulfuric, perchloric, phosphoric, and chromic acids.
Primary storage concern: to prevent contact and reaction with each other
and other substances and corrosive action on surfaces. Each oxidizing acid
must be double contained with the primary container must be kept inside.

Organic and Mineral Acids

Examples: Acetic, formic, glacial acetic, hydrochloric, propionic, trifluoroacetic acids.
Primary storage concern: To prevent contact and reaction with bases and
oxidizing acids and corrosive action on surfaces
Note: Steel cabinets are not recommended for storage of phenol,
nitic acid or sulfuric acid.

Manufactured In Accordance with OSHA Regulations & NFPA code 30 specifications.


Specifications


Cabinets construction
Powder coated paint finish 18-gauge steel sheet.
Capacity
1000 litres
Diameters
4 inches Ducting host diameters
Dimensions (External)
863W x 950D x 2000H (mm)
Dimensions (Internal)
780Wx790Dx1690H (mm)
No of Shelves
2 units
PP Spill Catcher Trays
3 units
Shelves Dimensions
768Wx780Dx30H (mm)
Type
Ventilated
Ventilation
By built-in adjustable speed sirocco fan
Weight
221 kg
