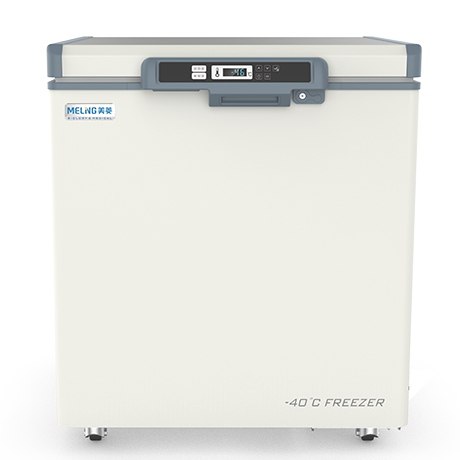

-40°C Ultra Low Temperature Freezer Chest Type (DW-FW360)
Description
Meling -20°C-40°C low temperature freezer medical freezer is equipped with high-quality refrigeration system for fast cooling. The high-precision temperature control system can display various parameters simultaneously, including power voltage, temperature inside the cabinet and environmental temperature, which can indicate the operation status clearly. And you are free to set the temperature inside the cabinet in the range of -20°C to -40°C. The two-layer heat insulation foamed door with airbag-typed outer steal can prevent loss of refrigerating capacity in an effective way. The liner is made of 304 stainless steel, which is safe for medical use.
High efficiency Refrigeration system
Freon-free
refrigerant, compressor supplied by an international famous brand and
EBM fan can guarantee fast cooling and are energy-saving and
environmentally friendly. Refrigerating circuit with proprietary
intellectual property rights ensures high efficiency and stability.
Two-layer heat insulating foamed door and the insulation design of the
outer door system with multiple patents can prevent loss of
refrigerating capacity in an effective way.
Six sides of the cabinet
are made from high-performance vacuum insulation material, improving
thermal insulation performance to a large extent.
High-precision Temperature control system
High-precision
microcomputer temperature control system and platinum resistor
temperature sensors ensure more precise temperature control.
Human-oriented Design
High-quality
steel plate structure with phosphate coating, stainless steel liner and
low noise design can create a comfortable environment.
Specifications
- Cabinet construction
- (External) High-quality Steel plate structure with powder coating
- Cabinet Construction
- (Internal) Stainless Steel liner
- Capacity
- 360 liters
- Controls panel
- High Precision microcomputer temperature control system
- Dimension (Internal)
- 1308W x 465D x 651H(mm)
- Dimension (Overall)
- 1534W x 775D x 929H(mm)
- Door
- Single Lid door
- Door Lock
- 1 unit of door lock
- Foam Insulation
- 110 mm Foaming insulation of CFC-free Polyurethane
- Hanging Baskets
- 1 unit Coated Steel wire Hanging Basket
- International Certificate
- ISO 9001, ISO 14001, ISO 13485
- Port (Access)
1 pc, 25mm diameter
- Power Consumption (KWh/24h)
3.88
- Power Input
- 440W
- Power Supply
- 220-240 Vac, 50 Hz, Single phase
- Rated Current (A)
1.63
- Rated Power (W)
269
- Refrigerant
- R290, CFC FREE
- Status Alarm conditions
- High & Low temperature alarm, Sensor failure alarm, power failure alarm, low battery alarm, high ambient temperature alarm
- Temp. Setting & Display
- Digital Display to 0.1°C
- Temp.working range
- -10°C to -40°C (adjustable)
- Type of Alarm system
- Audible and Visual alarms with battery back-up
- Weight
- 103kg
- Wheels
- 4 pcs caster wheels
