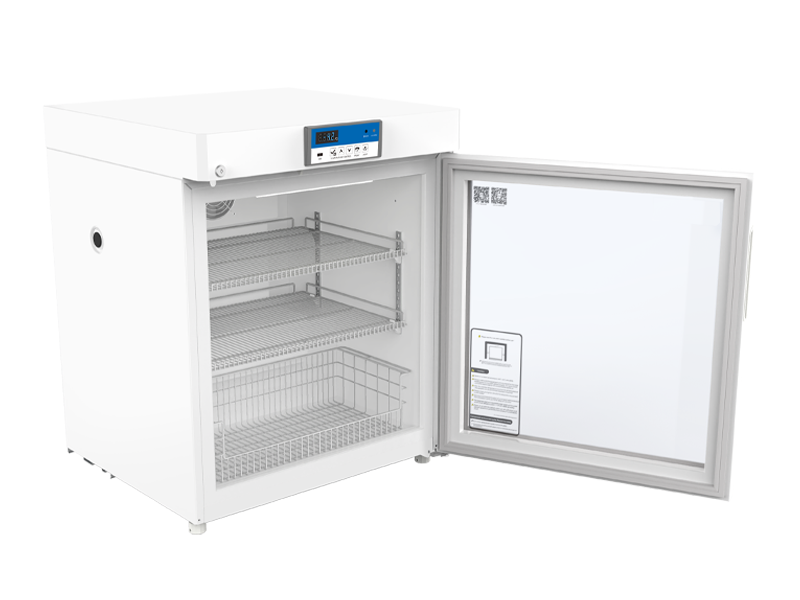

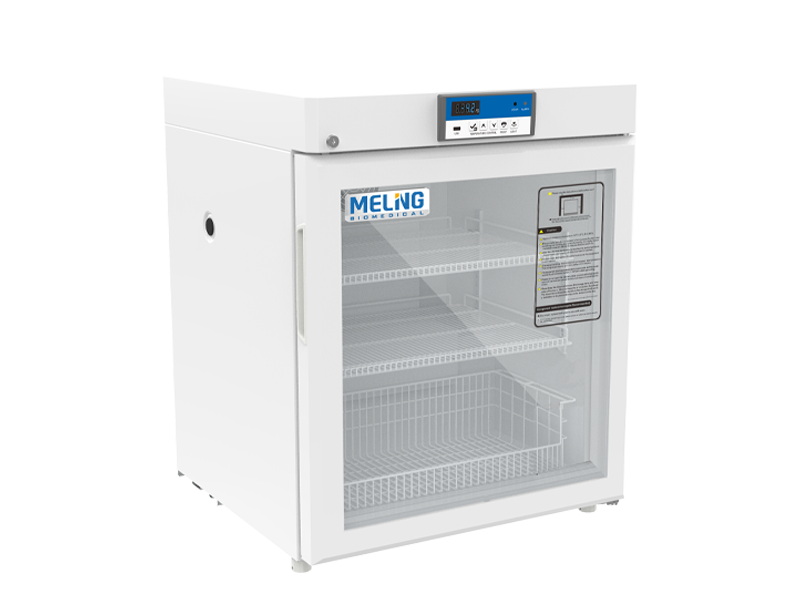

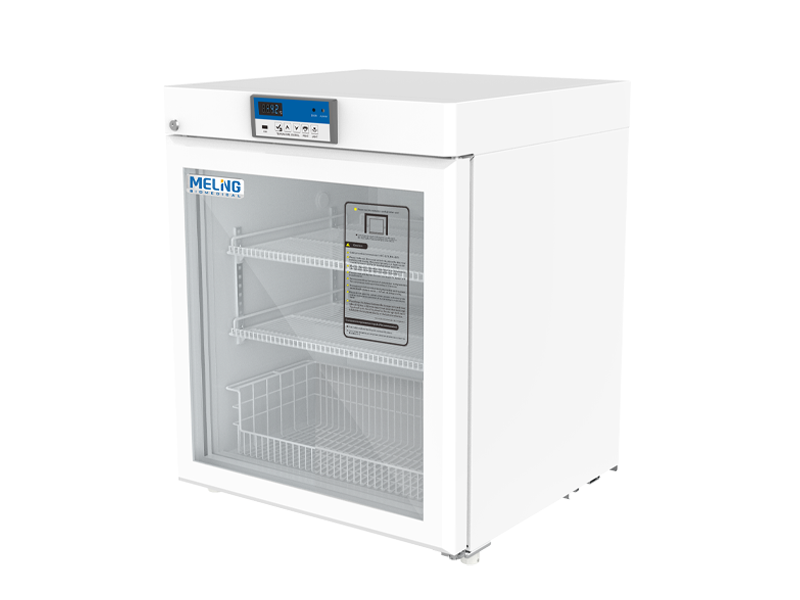

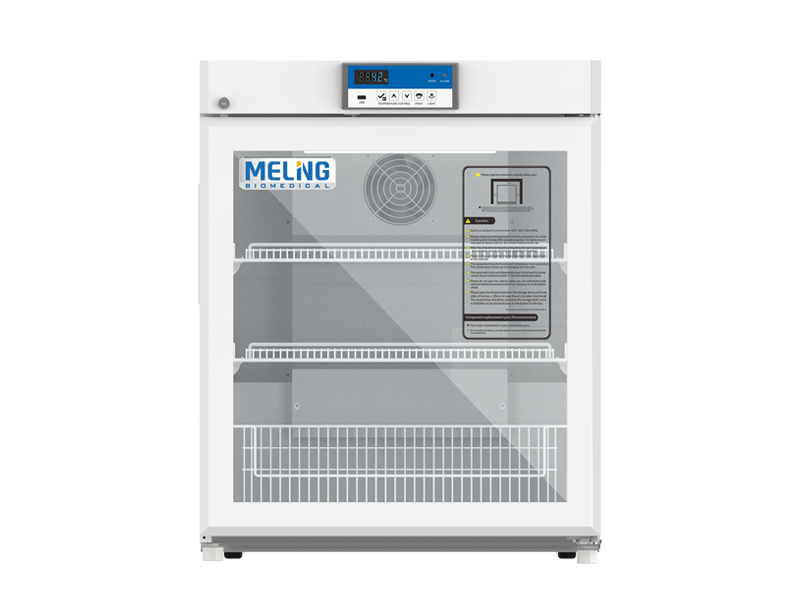

2~8℃ Undercounter Pharmacy/Medical/Vaccine Refrigerator YC-130L
Description
Features
Perfect Audible And Visual Alarms Including High/Low Temperature,High Ambient Temperature，Power Failure , Low Battery，Sensor Error,Door Ajar，Built-In Datalogger USB Failure，Main Board Communication Error,Remote Alarm
The Small Medical Refrigerator With 3high-Quality Steel Wire Shelves, The Shelves Are Adjustable To Any Height For Satisfying Different Requirements
Standard With Build-In USB Datalogger, Remote Alarm Contact And RS485 Interface For Monitor System
1 Cooling Fan Inside, Working While Door Is Closed, Stopped While The Door Is Opened
The CFC-Free Polyurethane Foam Insulating Layer Is Environmentally Friendly
The Electrical Heating Glass Door Filled With Insert Gas Performs Well In Thermal Insulation
The Medical Refrigerator Is Equipped With 2 Sensors. When The Primary Sensor Fails, The Secondary Sensor Will Be Activated Immediately
The Door Is Equipped With A Lock Preventing From Unauthorized Opening And Operation
Scope Of Application
Small Medical Refrigerator YC-130L Suitable For Storage Of Biological Products, Vaccines, Drugs, Reagents, And More;
Suitable For Use In Pharmacies, Pharmaceutical Factories, Hospitals, Centers For Disease Prevention & Control, Clinics, Etc.
Specifications
- Access port
- 1pc. Ø 25 mm
- Ambient temperature
- 16-32℃
- Cabinet type
- Upright
- Capacity(L）
- 130
- Casters
- 2+2( leveling feet）
- Climate class
- N
- Compressor
- 1pc
- Controller
- Microprocessor
- Cooling method
- Air cooling
- Cooling performance
- 5℃
- Data logging/Interval/Memory capacity
- USB/Record every 10 minutes / 100,000data
- Defrost mode
- Automatic
- Display
- Digital display
- Door lock with key
- Yes
- Door with heater
- Yes
- Electrical
- Power failure, Low battery
- External material
- PCM
- External size(W*D*H)mm
- 650*625*810
- Inner material
- Aumlnum plate with spraying/Stainless steel(optional stainless steel)
- Insulation thickness(mm)
- L/R:48,B:50
- Internal size(W*D*H)mm
- 554*510*588
- Lighting
- LED
- Model
- YC-130L
- NW/GW(Kgs)
- 51/56
- Package size(W*D*H)mm
- 720*703*880
- Refrigerant
- R600a
- Shelves
- 3 (coated steel wired shelf)
- System
- Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure Accessories
- Temperature
- High/Low temperature, High ambient temperature
- Temperature range
- 2~8℃
