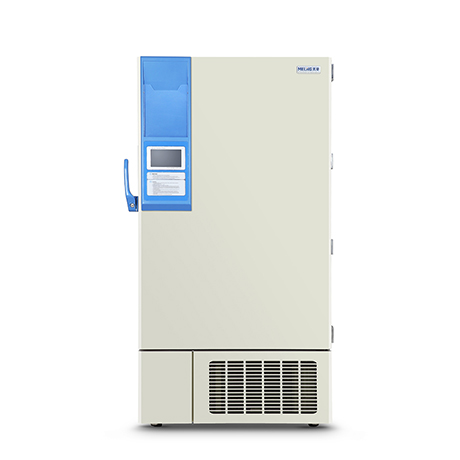

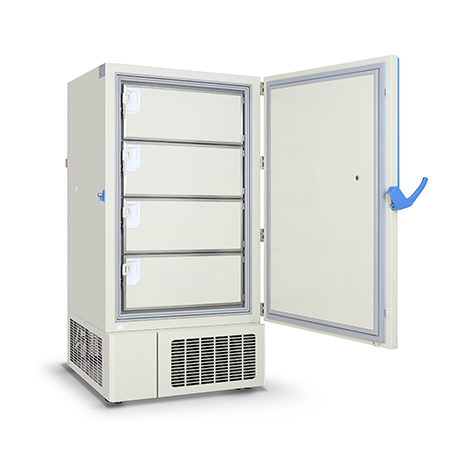

-86℃ Ultra-low Temperature Freezer (DW-HL678SA)
Description
Features Adopted famous SECOP compressor and Germany brand EBM fans 7”inches LED screen control system has clear display and allows more accurate temperature control Equipped with VIP plus vacuum insulation foaming inside the door for better temperature performance Allow storage of inventory 2”box in 500 pieces and inventory 2ml vial in 50000 pieces Lockable door and keyboard lock with password to prevent unauthorized operating and access Fitted with 4 PCS casters & level feet for easy moving the ultra low temperature freezer Enable machine startup delay, power off protection, and 72 hours battery backup for controller display Designed with USB datalogger to record relevant temperature data, which can be downloaded and checked Optional temperature recorder, warning lamp, smart temperature monitor system and CO2 back-up system Certificate: CE certificate, ISO9001, ISO14001,ISO13485
Specifications
- Access Test Port
3
- Backup Battery
Standard
- Cabinet Type
Upright
- Capacity (Effective)
678L
- Casters
4 casters with 2 leveling feet
- Chart Recorder
Optional
- Climatic
N
- CO2 Back Up System
Optional
- Compressor
2 pcs
- Compressor Brand
Secop (danfoss)
- Cooling
Direct cooling
- Data Logger
USB
- Data Output
USB
- Defrost
Manual defrost
- Dimensions External (W*D*H,mm)
1090W*1025D*1965H (mm)
- Dimensions Internal (W*D*H,mm)
750W*696D*1286H (mm)
- Display
Touch screen
- Door Lock
Yes
- Evaporate
- D-form copper tube
- Fan Motor
EBM
- Inner doors
4pcs
- Insulation
VIP Plus vacuum insulation panel
- Insulation Thickness (mm)
130
- Inventory 2" Box (pc)
- 5*5*20=500
- Inventory 2ml Vial (pc)
50000
- Inventory Rack (Model & Quantity)
ZKL304-552B-CT:20
- Material (External)
- High quality steel plates with spraying
- Material (Interior)
Galvanized steel sheet
- Model
DW-HL678SA
- Power (Input)
1950W
- Power Consumption (kWh/24 hours)
13
- Rated Current (A)
8.87
- Refrigerant
Mixture gas
- Sealing Material
- MVQ
- Shelves
3pcs
- Status Alarm conditions
Visual & Audio
High / low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, filter blocking alarm, system failure alarm- Temp.Range(°C)
-40℃~ -86℃
- Temperature (Ambient)
16℃ ~ 32℃
- Weight (Net/Gross)
330/382 (Kg)
