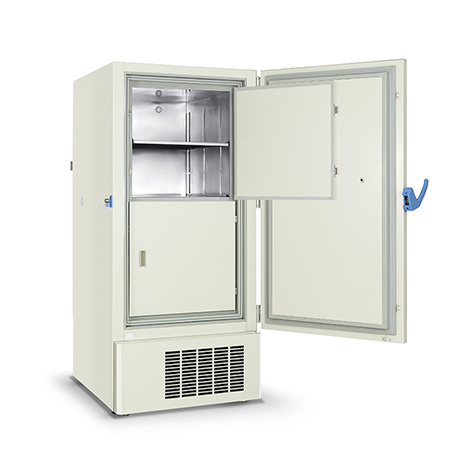

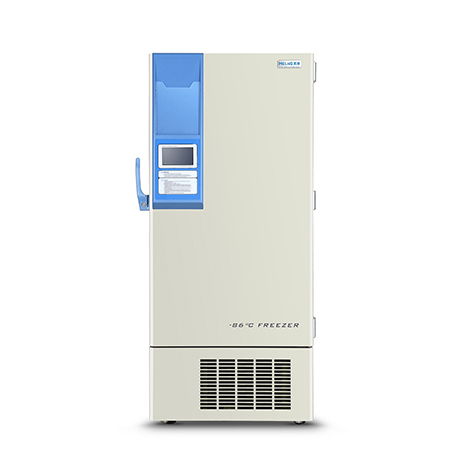

-86℃ Ultra-low Temperature Freezer (DW-HL528SA)
Description
• Adopted Embraco compressor and Germany brand EBM fans
• High quality structure steel external material and 304 grade stainless steel inner material, exquisite beauty and easy to clean
• Equipped with VIP Plus vacuum insulation foaming inside the door for better temperature performance
• 2-layers of solid doors with 2 independent inner doors to protect your lab and medical materials in proper temperature
• Lockable door and keyboard lock with password to prevent unauthorized operating and access
• Fitted with 4 pcs casters & level feet for easy moving the ultra low temperature freezer
• Enable machine startup delay, power off protection, and 72 hours battery backup for controller display
• Designed with USB interface for data storage and 1 access test port
• Optional temperature recorder, warning lamp, smart temperature monitor system and CO2 back-up system.
• Certificate: CE certificate, ISO9001, ISO14001,ISO13485
Specifications
- Access Test Port
2
- Cabinet Type
Upright
- Capacity (Effective)
528L
- Casters
4 casters with 2 leveling feet
- Chart Recorder
Optional
- Climatic
N
- CO2 Back Up System
Optional
- Compressor
1 pcs
- Compressor Brand
Embraco
- Cooling
Direct cooling
- Data Logger
Optional
- Data Output
USB
- Dimensions External (W*D*H,mm)
930W*1041D*1947H (mm)
- Dimensions Internal (W*D*H,mm)
585W*696D*1266H (mm)
- Display
Touch screen
- Door Lock
Yes
- Evaporate
Coil type evaporate
- Fan Motor
EBM
- Inner doors
2pcs
- Insulation
VIP Plus vacuum insulation panel
- Insulation Thickness (mm)
130
- Inventory Rack (Model & Quantity)
ZKL304-552B-CT:16
- Material (External)
- High quality structure steel
- Material (Interior)
Galvanized steel sheet
- Model
DW-HL528SA
- N.W/G.W (Kgs)
281/319
- Power (Input)
1340W
- Power Consumption (kWh/24 hours)
10.5
- Power Supply (Voltage)
230V,50Hz /
- Refrigerant
Mixture gas
- Sealing Material
- MVQ
- Shelves
3pcs
- Status Alarm conditions
Visual & Audio
High and low temperature alarm, sensor failure alarm, door open alarm, power failure alarm- Temp.Range(°C)
-40℃~ -86℃
- Temperature (Ambient)
16℃ ~ 32℃
