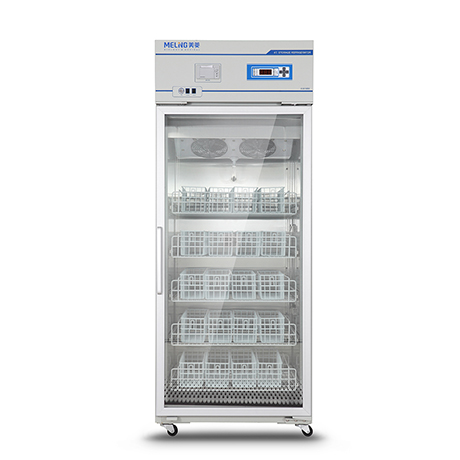

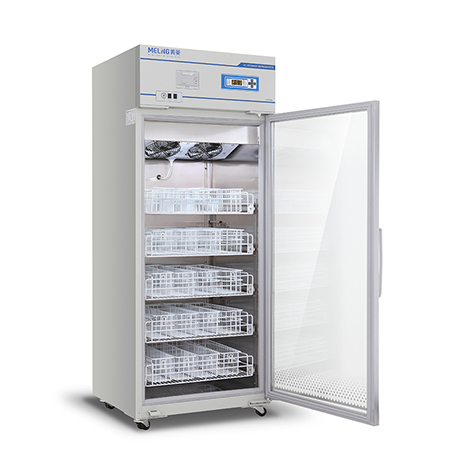

4±1℃ Blood Bank Refrigerator (XC-588L)
Description
Freon-free refrigerant and brand compressor can ensure fast refrigeration and environmentally friendly
The digital average temperature display allows temperature display precisely reaching 0.1℃
Forced air circulation system, the high-effective air-cooled condenser and the fin-type evaporator
Upright type, exterior material made from structural steel plate, interior material made from 304 grade stainless steel material
The spring switch for fan control can stop the fan motor when the door is opened and restart the fan motor automatically when the door is closed
The well-developed alarm system including high temperature alarm, low temperature alarm, door opening alarm, high volt-age/low voltage alarm, sensor failure alarm, and power outage alarm
The door has anti-condensation heating function, which is convenient for operation in an environment with high humidity
3-layer transparent door with inert gas inside, and lockable
Adjustable 5 units trays made of steel wire
Automatic temperature control and automatic defrost
Turn-on delay and stopping Interval protection
Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ
Certificate: ISO9001, ISO14001, ISO13485, CE
Optional: chart recorder, monitor system, baskets for blood storage
Specifications
- Access Test Port
1pc
- Blood Basket
- 20
- Cabinet Type
- Upright
- Capacity (Effective)
- 588L
- Compressor
- 1 pc
- Controller
Microprocessor
- Defrost Mode
Automatic
- Dimensions External (W*D*H,mm)
- 800Wx760Dx1940H(mm)
- Dimensions Internal (W*D*H,mm)
- 650Wx607Dx1403H(mm)
- Display
Digital display
- Door Lock with key
- Yes
- Insulation Thickness (mm)
55
- Material (External)
- SPCC steel with powder coating
- Material (Interior)
- Stainless Steel
- Power (Input)
605 W
- Power Consumption (KWh/24h)
9.7
- Power Supply (Voltage)
- 230+10%/50
- Rated Current (A)
4.1
- Refrigerant
- R134a
- Shelves
5
- Status Alarm system
Visual & Audio
High / low temperature alarm, sensor error alarm, power failure alarm, low battery alarm, door ajar alarm
- Status Climatic
N
- Temp.Range
- 4±1°C
- Temperature (Ambient)
5C ~ 35C
- Weight (Net/Gross)
- 200 (kg)
- Wheel Casters
4 pcs (2 caster with brake)
