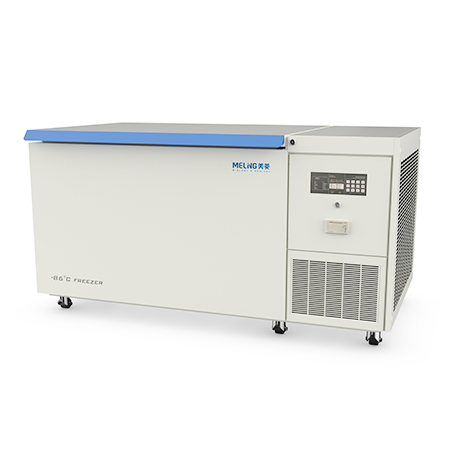

-86℃ Ultra-low Temperature Freezer (DW-HW668)
Description
Microprocessor-based temperature control system Microprocessor-based temperature controller, -40℃~-86℃ adjustable , controlling precision is 1℃, digital temperature display. Keyboard lock and password protected configuration page, delayed start and safe stop interval between restart and being terminated. Audible and visual alarm High or low temperature alarm, power failure alarm, low battery alarm, door open alarm, filter blocking alarm, system failure alarm. With temperature recorder, record 7days data, 72 hour back-up battery for recorder and controller work. Human-oriented structure design Chest type, stainless steel interior, outer is painted steel panel, 4 units Casters for easy handing. Top door with key lock. Two-times foaming technology, double seal design. 155mm extra thickness heat insulation. High-efficiency refrigeration system Imported famous brand compressor, fan electromotor with Germany EBM. Unique refrigeration circulation and unipolar compressor oil-lubricated technology. China Patent technology of mixture refrigerant, specially Single stage refrigeration design.
Specifications
- Access Test Port
1pc
- Backup Battery
Yes
- Cabinet Type
Chest type
- Capacity (Effective)
668L
- Casters
6pcs
- Chart Recorder
Optional
- Climatic
N
- CO2 Back Up System
Optional
- Compressor
2 pc
- Compressor Brand
EBM
- Controller
Microprocessor
- Cooling
Direct cooling
- Data Logger
Printer/ Record every 20 minute/ 7days
- Defrost
Manual defrost
- Dimensions External (W*D*H,mm)
2033W*1190D*1037H (mm)
- Dimensions Internal (W*D*H,mm)
1200W*815D*610H (mm)
- Display
Digital display
- Door Lock
Yes
- Foaming Lid
3
- Insulation Thickness (mm)
135
- Inventory Rack (Model & Quantity)
ZKW304-9-2:40
- Material (External)
- Steel plates with spraying
- Material (Interior)
304 Stainless steel
- Model
DW-HW668
- Power (Input)
1950W
- Power Consumption (kWh/24 hours)
13.4
- Rated Current (A)
9.5
- Refrigerant
CFC-Free Mixture gas
- Status Alarm conditions
Visual & Audio
High / low temperature, high ambient temperature, power failure, low battery, sensor error, system failure, condenser cooling failure- Temp.Range(°C)
-10C ~ -86℃
- Temperature (Ambient)
16℃ ~ 32℃
- Voltage
220V,50Hz / 110V,60Hz / 220V,60Hz
- Weight (Net/Gross)
330 (Kg)
