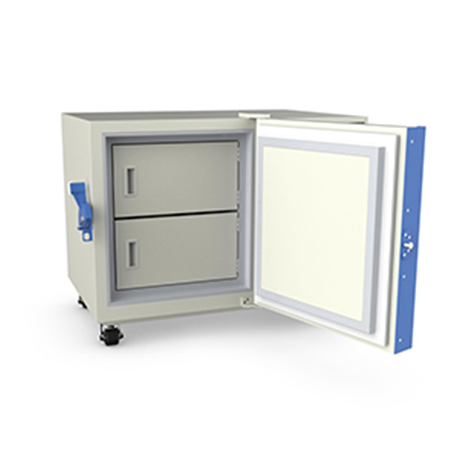

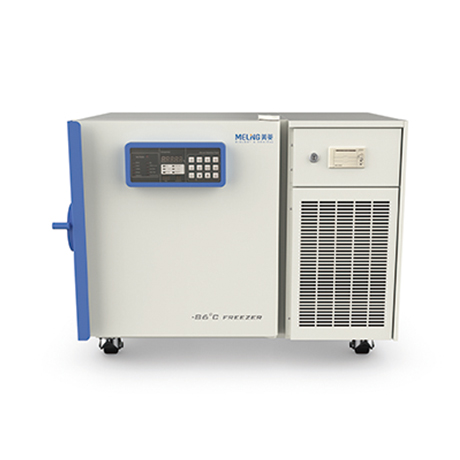

-86℃ Ultra-low Temperature Freezer (DW-HL100)
Description
Features High-precision microcomputer temperature control system for easily and precisely temperature setting The platinum resistor temperature sensors can realize more precise temperature control. High-definition and easy-handling control panel to set the temperature range from -10°C to -86°C with digital temperature display precision in 1°C Lockable door, keyboard lock and password access prevents any unauthorized access and operation China patent CFC free mixture refrigerant composing of R134a, R404a, R23, R410A, N2 and so on With temperature printer, record 7days data. 72 hour battery back up for printer and controller display Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or 110V 50/60HZ. Optional: Chart recorder, CO2 back up system, storage racks/boxes, Remote alarm system
Specifications
- Access Test Port
1 as standard
- Backup Battery
Yes
- Cabinet Type
Upright
- Capacity (Effective)
100L
- Casters
4 units
- Chart Recorder
Optional
- Climate Class
N
- CO2 Back Up System
Optional
- Compressor
1pcs
- Compressor Brand
SECOP
- Controller
Microprocessor
- Cooling
Direct cooling
- Data Logging/ Interval/ Recording Time
Printer/ Record every 20 minute/ 7days
- Defrost
Manual
- Dimensions External (W*D*H,mm)
1066W*742D*820H (mm)
- Dimensions Internal (W*D*H,mm)
450W*439D*514H (mm)
- Display
LED
- Door Lock
1
- Evaporate
- Coil evaporator
- External Door
1pcs
- Fan Motor
EBM
- Inner doors
2pcs
- Insulation Thickness (mm)
90, R:115
- Inventory Rack (Model & Quantity)
ZKL304-432B-CT:3 + ZKL304-332B-CT:3
- Material (External)
- SPCC steel with powder coating
- Material (Interior)
Galvanized steel sheet (optional Stainless steel)
- Model
DW-HL100
- Power (Input)
1100W
- Power Consumption (kWh/24 hours)
8
- Rated Current (A)
4.5
- Refrigerant
CFC-Free Mixture gas
- Shelves
1pcs, made of 304 grade stainless steel
- Status Alarm conditions
Visual & Audio
High and low temperature alarm, sensor failure alarm, condenser cooling failure alarm, low battery alarm, power failure alarm- Temp.Range(°C)
-10C ~ -86℃
- Temperature (Ambient)
16℃ ~ 32℃
- Voltage
- 220V,50Hz / 110V,60Hz / 220V,60Hz
- Weight (Net/Gross)
145 (Kg)
