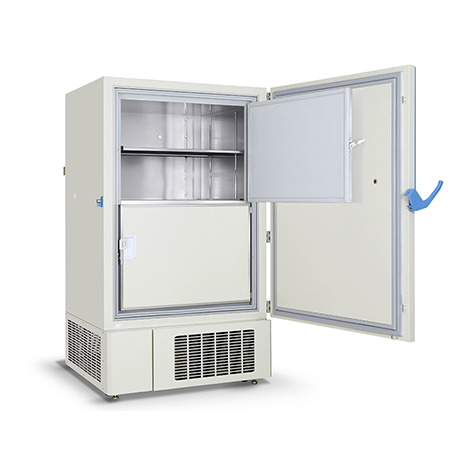

-86℃ Ultra-low Temperature Freezer (DW-HL1008S)
Description
Features D-form copper tube evaporator for better heating dissipation PT-100 platinum resistance sensors which is very sensitive to the temperature changing
7”inches LED screen control system has clear display and allows more accurate temperature control
2-layers of solid doors with 2 independent inner doors to protect your lab and medical materials in proper temperature
SPCC steel with powder coating external material and 304 grade stainless steel inner material, exquisite beauty and easy to clean
Optimized storage space design to accommodate up to inventory 2"box in 770 pieces and inventory 2ml vial in 77000 pieces
Lockable door and keyboard lock with password to prevent unauthorized operating and access
Enable machine startup delay, power off protection, and 72 hours battery backup for controller display
Designed with USB datalogger to record relevant temperature data, which can be downloaded and checked
Optional temperature recorder, CO2 back-up system, and low voltage surge protector
Certificate: CE certificate, ISO9001, ISO14001,ISO13485
Specifications
- Access Test Port
3
- Backup Battery
Standard
- Cabinet Type
Upright
- Capacity (Effective)
1008L
- Casters
4 casters with 2 leveling feet
- Chart Recorder
Optional
- Climatic
N
- CO2 Back Up System
Optional
- Compressor
2 pcs
- Compressor Brand
Secop (danfoss)
- Cooling
Direct cooling
- Data Logger
USB
- Data Output
USB
- Defrost
Manual defrost
- Dimensions External (W*D*H,mm)
1362W*1025D*2002H (mm)
- Dimensions Internal (W*D*H,mm)
1022W*696D*1378H (mm)
- Display
Touch screen
- Door Lock
Yes
- Evaporate
- D-form copper tube
- Fan Motor
EBM
- Inner doors
2pcs
- Insulation
VIP Plus vacuum insulation panel
- Insulation Thickness (mm)
130
- Inventory 2" Box (pc)
- 5*5*14+6*5*14=770
- Inventory 2ml Vial (pc)
77000
- Inventory Rack (Model & Quantity)
ZKL304-552B-CT:14 + ZKL304-652B-CT:14
- Material (External)
- High quality steel plates with spraying
- Material (Interior)
Galvanized steel sheet (optional Stainless steel)
- Model
DW-HL1008S
- Power (Input)
2600W
- Power Consumption (kWh/24 hours)
19.15
- Rated Current (A)
9.3
- Refrigerant
CFC-Free Mixture gas
- Sealing Material
- MVQ
- Shelves
3pcs
- Status Alarm conditions
Visual & Audio
High / low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, filter blocking alarm, system failure alarm- Temp.Range(°C)
-10C ~ -86℃
- Temperature (Ambient)
16℃ ~ 32℃
- Weight (Net/Gross)
430 (Kg)
