-164℃ Cryogenic Freezer (DW-UW128)
Description
Unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention.
The turn-on delay and stopping interval protection function can ensure reliable operation
The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission
Environmental protective refrigerant invented by Chinese academy of science(CAS) Unique refrigeration circuit with china patent Refrigeration technology of single-stage oil slide compressor, powerful cooling ability Famous international compressor, quick cooling Famous international fan motor
Unique two times foaming technology, super thick VIP insulation which greatly improves the insulation effect； VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect
Optional single type upright racks Optional alarm lamp, voltage compensation, remote alarm and liquid N2 backup system

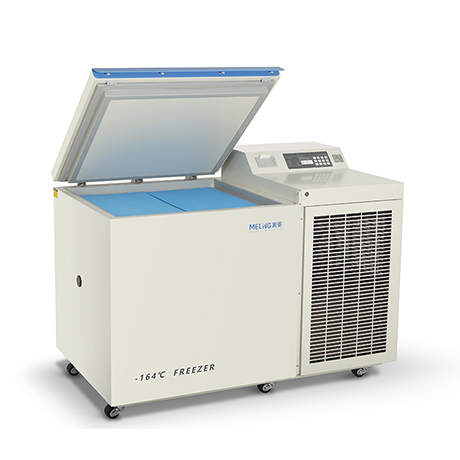

Chest type with lid to be opened from the top, assisting balanced hinges to make it easily Casters can be fixed for easy movement and fixation
Specifications
- Cabinet Type
Chest
- Capacity (Effective)
128L
- Compressor
1 pcs
- Compressor Brand
Huayi
- Controller
Microprocessor Controller
- Dimensions External (W*D*H,mm)
1510W*985D*1120H (mm)
- Dimensions Internal (W*D*H,mm)
490W*470D*585H mm
- Evaporate
Coil type evaporate
- Fan Motor
EBM from Germany
- Inventory Rack (Model & Quantity)
ZKW304-9-2: 9
- Material (External)
Steel plates with spraying
- Material (Interior)
Structure steel
- Model
DW-UW128
- Power (Input)
4100W
- Power Supply (Voltage)
380V, 50 Hz, single phase
- Refrigerant
Mixture gas
- Status Alarm conditions
Visual & Audio
High/low temperature alarm, High/low voltage, sensor failure alarm, Low battery, Condenser heat disspation, System failure.- Temp.Range(°C)
-110C ~ -152℃
- Temperature (Ambient)
16℃ ~ 32℃
- Weight (Net/Gross)
315 (Kg)
