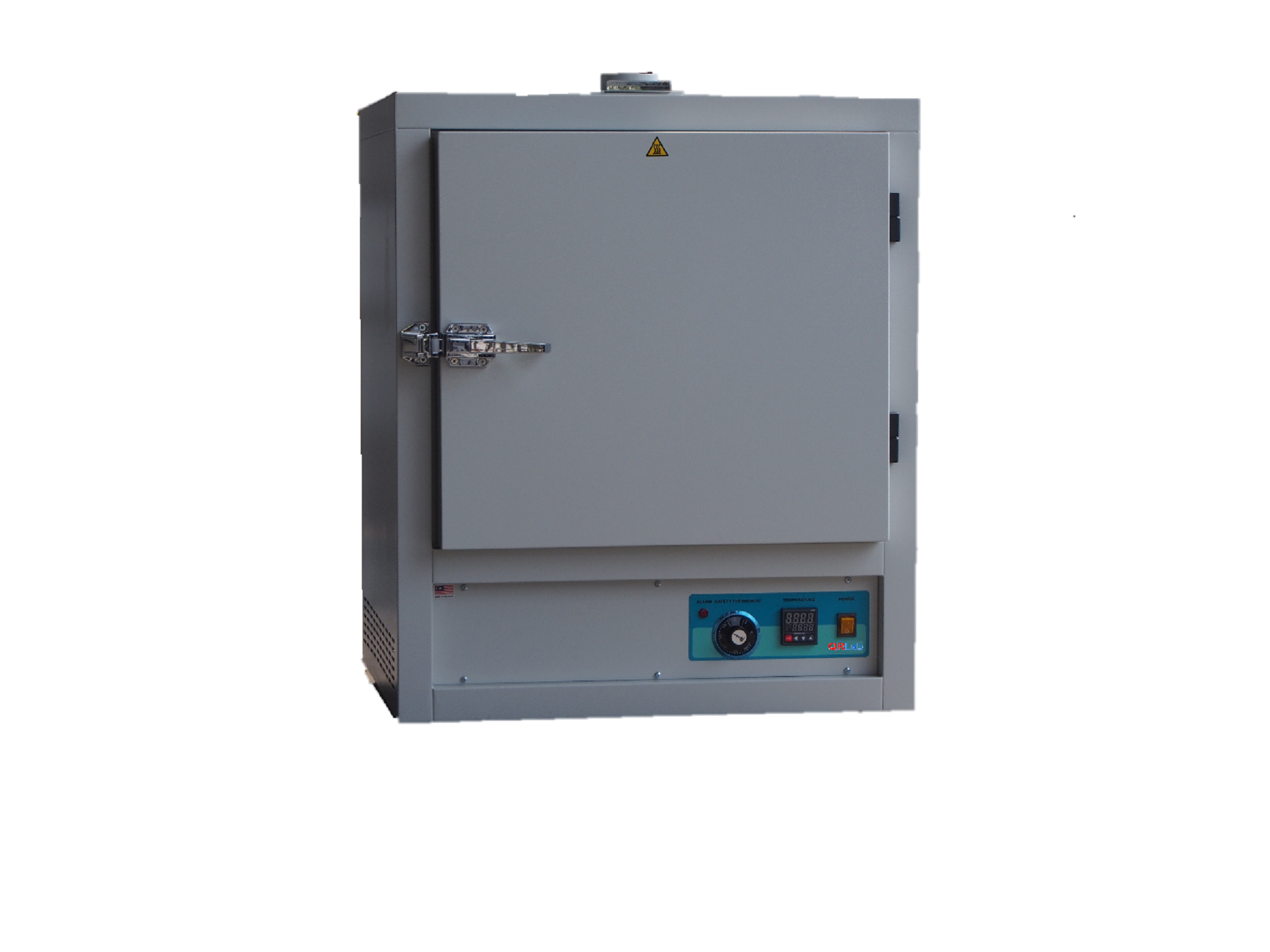

Natural Convection Ovens (OV-100)
Description
■ Construction: Stainless Steel interior, Powder coated mild steel exterior.
■ Temperature range: Ambient +5°C to 220°C
■ Safety feature: Hi-limit cut-off
Features
■ Universal heating ovens with gravity convection for laboratory use in heating, conditioning, curing, and thermal testing.
■ Digital PID controller with uniformity of temperature fluctuation less than ±1.0°C.
■ Setting temperature easily with push buttons. Temperature display to 1°C.
■ Over-temperature are protected with Hi-Limits thermostat which is a safety devices.
■ Memory back-up system protect the set point value after power failure occurred.
■ Double-wall design with Rockwool insulation for excellent heat retention.
■ Stainless steel shelves are adjustable over the full height in 1/2" increment.
■ Shielded heating element is vertically mounted avoiding any accidental spills of samples.
■ Auto diagnostic system ensure rapid identification and correction if faulty occur.
■ Off-set function for calibration and ISO requirement purpose.
■ Supplied with 2 stainless steel shelves and 2m power cord.
Specifications
- Cabinets construction
- (Interior) Stainless Steel
- Cabinets construction
(Exterior) Powder coated mild steel
- Capacity
- 100 Litres
- Dimensions (External)
- 675W x 625D x 865H (mm)
- Dimensions (Internal)
- 475W x 470D x 400H (mm)
- Heater Power
- 1500W
- Heating time up to 150°C
25 min
- Power supply
- 240VAC, 50 Hz, 6.3A
- Recovery time, oven at 150°C
1.25min (door open for 1 min)
- Safety devices
- Over temperature protection
- Shelves
- 2 units Stainless Steel Shelves
- Shelves Size (mm)
470W x 430D x 10H
- Temp. setting & display
- Digital display up to 1°C
- Temperature Controller
- Digital PID Controller
- Temperature Uniformity
- ±1.0°C at 120°C
- Weight
- 45 Kg
- Working Temp. range
- 5°C above ambient to 220°C
