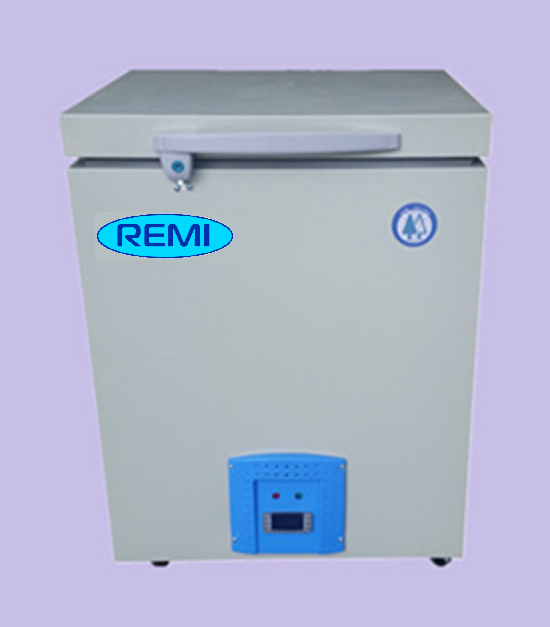

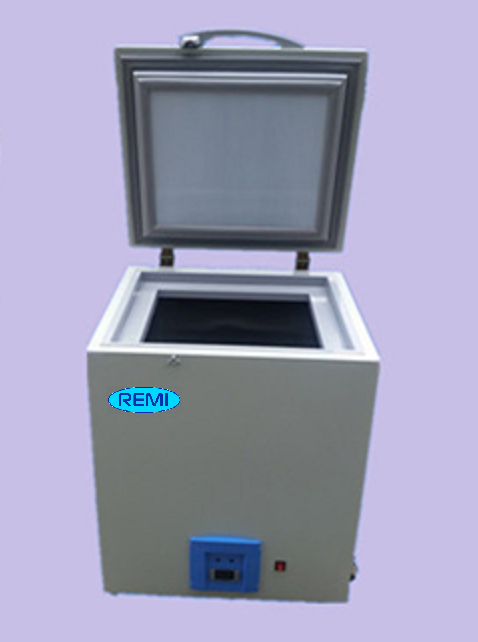

-86°C Ultra Low Temperature Freezer Chest Type (DW-86W50)
Description
Temperature Control
■ Microprocessor control, digital display to 0.1°C resolution;
temperature is adjustable from -40°C to -86°C.
Safety Control
■ Power-on delay function, off-cycle protection is to
ensure the security of the compressor.
Alarm System
■ Audible and Visual alarm in two alarming methods:
Buzzer alarming and digital flashing alarming.
■ Alarm conditions included High and Low limit
Alarm, sensor malfunction alarm, Power Failure Alarm (Optional)
Cooling System
■ Fast cooling system is generated by imported compressor and
EBM fan motor.
■ Outstanding temperature preservation is ensuring by the
CFC-Free form insulation.
■ Strong cooling system is generated by copper coil
Evaporator and condensing system.
Ergonomic Design
■ Single stage refrigeration technology & design, strong
Cooling and quick freezing.
■ Double gaaskets and extra thickness of
Insulation ensure reliable operation and safety of sample storage.
■ Safety door lock is designed to prevent accidental or unauthorised access.
■ Casters wheels with lock, is design for easy moving.
Specifications
- (Adjustable) Temp.working range
- -40°C to -86°C (adjustable)
- Alarm conditions
- High & Low alarm, Sensor Error, Power Failure alarm(Optional)
- Alarm system
- Audible and Visual alarms with battery back-up
- Cabinet construction
- (External) Powder Coated Steel Sheet
- Cabinet Construction
- (Internal) Stainless Steel Sheet
- Capacity
- 50 litres
- Condenser
- Fan cooling fin type
- Dimensions (External)
- 650W x 560D x 880H(mm)
- Dimensions (Internal)
- 440W x 350D x 315H(mm)
- Display & Temp. Setting
- Digital Display to 0.1°C
- Door/Door Lock
- Single Foamed door, top open/ 1 unit of door lock with key
- Evaporator
- Copper coil
- Foam Insulation
- 100 mm thick CFC-free Urethane
- Power Input
- 400W
- Power supply
- 220-240 Vac, 50 Hz, Single phase
- Refrigerant
- Mixed CFC FREE Refrigerants R404a, R600a,...etc
- Standard & Certificate
- CE Mark, ISO13485
- Temperature Sensor
- NTC
- Weight
- 60kg
- Wheels
- 4 pcs caster wheels
