2℃~8℃/-10℃~ -40℃ Medical Refrigerator & Freezer YCD-FL450
Description

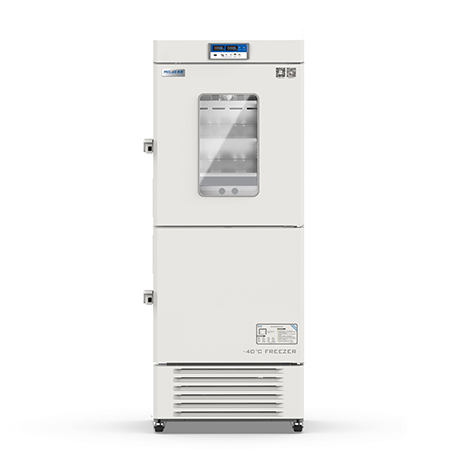

Meling 2℃~8℃/-10℃~-40℃ refrigerator freezer combo YCD-FL450 works as scientific refrigerator freezer and medical refrigerator and freezer, which comes with brand new appearance. It is fridge freezer with upper refrigeration and lower freezing separately control. This fridge freezer combo adopts high-efficiency 2 compressors and environmentally friendly refrigeration, which can ensure fast refrigeration and separately control of upper refrigeration chamber and lower freezing chamber. The digital temperature display can indicate operating status clearly, and you can set the high temperature or low temperature alarm points regarding to your needs. We design the thermal insulation with thicker insulation layer and CFC-free polyurethane foam technology for better insulation effect.
High-precision Computerized Temperature Control System
The
temperature control system of this combination refrigerator freezer can
display the humidity and temperature independently. And you are able to
check and view the operating status clearly on the display. This medical
grade refrigerator freezer allows you to set the temperature freely
with upper temperature in the range of 2℃~8℃ and lower temperature in a
range of -10℃~-40℃.
High-efficiency Refrigerating System
This
combination refrigerator freezer is equipped with high-efficiency
compressors for upper refrigeration chamber and lower freezing chamber.
And the refrigerant is environmentally friendly, which can ensure
energy-saving and high-efficiency. The CFC polyurethane foaming
technology and thicker insulation layer cam improve the effect of
thermal insulation.
Comprehensive Security System
It
is also a secure vaccine storage refrigerator freezer for the in-built 8
audible and visual alarm system, including high ambient temperature
alarm, high\low temperature alarm, sensor failure alarm, communication
failure (USB) data download failure alarm, low battery alarm, door
opening alarm, power off alarm, and data logging function not enabled
alarm, which ensure safer sample storage.
Features
Combination refrigerator freezer with upper 2°C ~ -8°C and lower-10℃~-40℃
Direct cooling and electronic temperature control for fast refrigeration and constant temperature
Separate control of upper refrigeration chamber and lower freezing chamber with separate compressors
Digital temperature display to control temperature precisely and monitor operating status clearly
Equipped with sheet metal refrigerated drawers and acrylic plates
The inner material with Aluminum plate with spraying and three layers coated steel wire shelves.
Ensure safe sample storage with inter-room independent door lock and independent external padlock
Tube-type condenser and built-in type evaporator work well to keep the temperature in the cabinet
LED lighting in the cabinet of the combination refrigerator freezer provides great visibility

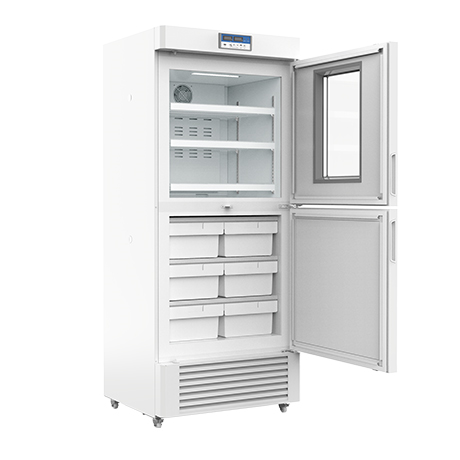

The lower freezing chamber is equipped with drawers and the refrigeration chamber is equipped with steel wire shelves
The combination refrigerator freezer is equipped with casters at the bottom for conveniently movement and placement
Standard with Build-in USB data-logger for temperature data recording
Specifications
- Battery Back-up for Alarm System
1 pc
- Cabinet Type
Upright
- Capacity (Effective)
450L; Ref:219L, Fre:219L
- Compressor
2pcs
- Compressor Brand
HuaYi
- Controller
Microprocessor Controller
- cooling method
Ref: Forced Air Cooling
Fre: Direct Cooling
- Data Logging/ Interval/ Recording Time
USB/ Record every 10 min/ 2 years
- Defrost Mode
Ref: Automatic, Fre: Manual
- Dimensions External (W*D*H,mm)
810W*745D*1955H (mm)
- Dimensions Internal (W*D*H,mm)
Ref: 650W*570D*627H (mm)
Fre: 650W*570D*627H (mm)
- Display
High-Brightness LED Digital Display to 0.1C
- Door Lock (External)
2 pcs
- Door Lock with key
1 pc
- Door with Heater
2 pcs
- Evaportor
Coil evaporator
- Fan Motor
EBM Fan from Germany
- Insulation Thickness (mm)
Ref: 80mm, Fre: 80mm
- Material (External)
Powder Coated Material (PCM)
- Material (Interior)
Aluminum plate with spraying
- Model
YCD-FL450
- Optional Accessories
RS485, Remote Alarm Contact
- Power (Input)
670W
- Power Consumption (KWh/24h)
4.95
- Power Supply (Voltage)
220V±10%, 50/60Hz, Single Phase
- Rated Current (A)
3.05
- Rated Power (W)
430W
- Refrigerant
Ref: R600a, Fre: R290
- Shelves/Drawers
Ref: 3 Coated steel wire shelves
Fre: 6 ABS drawers
- Status Alarm conditions
Visual & Audio
high and low temperature alarm, sensor failure alarm, door ajar alarm, Power Failure alarm, high ambient temperature alarm, USB data-logging failure alarm, and low battery alarm- Status Climatic
N
- Temp.Range(°C)
Ref: 2C ~ 8C, Fre: -10C~ -40C
- Temperature (Ambient)
16C to 32C
- Temperature recording output
USB port built-in data-logger
- Test Port (Access)
2 pcs, diameter: 25mm
- Weight (Net/Gross)
146/159 Kg
- Wheel Casters
4 (2 castor with brake) + (2 leveling feet)
