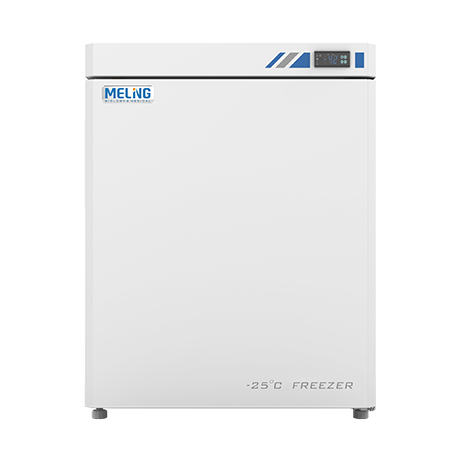

-10C to -25C Low Temperature Medical Freezer DW-YL90
Description
Meling -10°C ~-25°C low temperature freezer DW-YL90 is a high quality laboratory / medical freezer with stable performance. This mini freezer is designed in specific volume for easy storage and placed on desktop and under counter. The small freezer is equipped with polyurethane foam door enabling perfect thermal insulation effects. And it provides multiple audible and visible alarm system to ensure more safe storage. The high-precision compromised temperature control system allows you to set and monitor the temperature in the cabinet.
Brand New Appearance with High-quality Product
The
polyurethane foam door of this low temperature freezer has great
thermal insulation performance and has the ability to ensure constant
temperature in the cabinet.
Multiple Alarms Ensure Safety of Storage
The
low temp freezer has multiple audible & visual alarm functions,
such as high temperature/low temperature alarm, door opening alarm (optional), sensor failure alarm, etc. and can
guarantee security of samples in a comprehensive way.
High-precision Temperature Control
The
high-precision computerized temperature control system ensures an
adjustable temperature within a range from -10 to -25℃ inside the
cabinet. And the high-definition digital temperature display can display
the temperature precisely in 0.1 ℃.
Features
The compressor supplied by a famous brand and high-efficiency refrigerant R600a can reduce energy consumption to a large extent;
The high temperature/low temperature alarm, door opening alarm (optional), sensor failure alarm can ensure security of samples comprehensively;

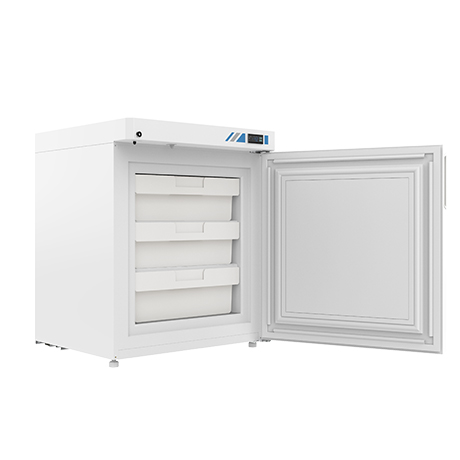

The invisible door handle can prevent damage during transportation and save space; The three drawers are convenient for separate storage of different types of things and can prevent cross influence among various things.
Specifications
- Cabinet Type
Upright
- Capacity (Effective)
90L
- Compressor
1 pc
- Controller
Microprocessor Controller
- cooling method
Direct Cooling
- Defrost Method
Manual Defrost
- Dimensions External (W*D*H,mm)
700W*669D*854H (mm)
- Dimensions Internal (W*D*H,mm)
- 500W*485D*532H (mm)
- Display
Digital LED Display
- Door (Solid)
1 pc
- Door Lock with key
1 pc
- Drawers with Individual Fix Cooling Shelves
3 ABS drawers
- Insulation Thickness (mm)
100 mm
- Material (External)
Powder Coated Material (PCM)
- Material (Interior)
Aluminum plate with spraying
- Model
DW-YL90
- Power (Input)
150W
- Power Consumption (KWh/24h)
0.58
- Power Supply (Voltage)
220-240V, 50 Hz, single phase
- Rated Current (A)
0.68
- Rated Power (W)
75W
- Refrigerant
R600a, CFC-Free
- Status Alarm conditions
Visual & Audio
High/low temperature alarm, sensor failure alarm, door ajar alarm- Status Climatic
N
- Temp Display Resolution
0.1℃
- Temp.Range(°C)
-10C ~ -25C
- Temperature (Ambient)
16C ~ 32C
- Test Port (Access)
1 pc (diameter: 25mm)
- Weight (Net/Gross)
54/59 (Kg)
- Wheels (Caster)
2 pc + 2 Leveling Feet
