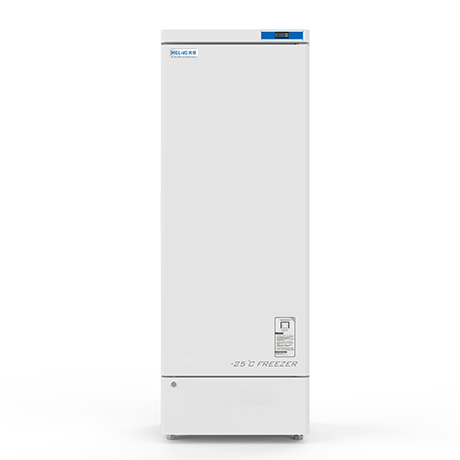

-10C to -25C Low Temperature Medical Freezer DW-YL270
Description
Meling -10°C ~-25°C low temperature freezer DW-YL270 is a high quality low temperature freezer with stable performance. It is equipped with international famous refrigeration system, which is high-efficiency and environmental friendly. And the condenser is designed perfectly for temperature stability and refrigeration system reliability. This low temp freezer is designed for laboratory and medical grade and best for storage of special materials, blood plasma, vaccine and biological products.
High-efficiency Refrigeration System
The
environmentally friendly Freon-free refrigerant and high-efficiency
enclosed compressor supplied by a famous brand can ensure energy saving
and low noise. The condenser installed on the bottom ensures temperature
stability and system reliability.
High-precision Temperature Control
The
high-precision computerized temperature control system ensures an
adjustable temperature within a range from -10 to -25℃ inside the
cabinet.
Reliable Security System
The
well-developed audible & visual alarm system (sensor failure alarm,
high temperature/low temperature alarm, etc.) makes it safer for
storage. The turn-on delay and stopping interval protection function can
ensure reliability in running;
Human-oriented Design
The
built-in door gasket is dust-proof and easy to clean. And it is equipped
with ABS engineering plastic liner. The adjustable front screws
facilitate easy movement.
The system has the
function of digital temperature display and temperature inside the
cabinet can be set within a range from -10℃ to -25℃ The high-precision
microcomputer temperature control system and platinum resistor
temperature sensors ensure more precise temperature control
The
compressor supplied by an international famous brand and EBM fan is
energy-saving and environmentally friendly The refrigerating circuit
with proprietary intellectual property rights ensures high efficiency
and stability

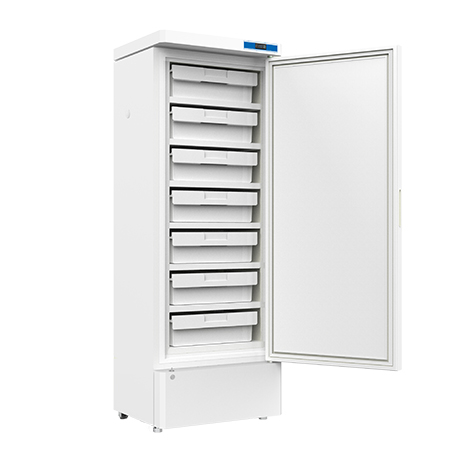

Seven transparent drawers can be used for storage based on classification.
The
two-layer thermal insulating foamed door can prevent loss of
refrigerating capacity in an effective way The cabinet is made from
CFC-free polyurethane material, which can improve its heat insulating
performance to a large extent
The well-developed audible & visual alarm system makes it safer for storage The turn-on delay and stopping interval protection function can ensure reliability in running The keyboard lock function can prevent any adjustment of operating parameters without permission The door is equipped with a lock, improving security of sample storage
Specifications
- Cabinet Type
Upright
- Capacity (Effective)
270L
- Compressor
1 pc
- Compressor Brand
Secope
- Controller
Microprocessor Controller
- cooling method
Direct Cooling
- Defrost Method
Manual Defrost
- Dimensions External (W*D*H,mm)
700W*640D*1792H (mm)
- Dimensions Internal (W*D*H,mm)
- 500W*460D*1235H (mm)
- Display
Digital LED Display
- Door (Solid)
1 pc
- Door Lock with key
1 pc
- Drawers with Individual Fix Cooling Shelves
7 ABS drawers
- Humidity (Ambient)
20%-80%
- Insulation Thickness (mm)
100 mm
- Material (External)
Powder Coated Material (PCM)
- Material (Interior)
Aluminum plate with spraying
- Model
DW-YL270
- Power (Input)
335W
- Power Consumption (KWh/24h)
1.21
- Power Supply (Voltage)
220-240V, 50 Hz, single phase
- Rated Current (A)
1.53
- Rated Power (W)
135W
- Refrigerant
R600a, CFC-Free
- Status Alarm conditions
Visual & Audio
High/low temperature alarm, sensor failure alarm, door ajar alarm, High ambient alarm- Status Climatic
N
- Temp Display Resolution
0.1℃
- Temp.Range(°C)
-10C ~ -25C
- Temperature (Ambient)
16C ~ 32C
- Test Port (Access)
1 pc (diameter: 25mm)
- Weight (Net/Gross)
87/95 (Kg)
- Wheels (Caster)
2 pc + 2 Leveling Feet
