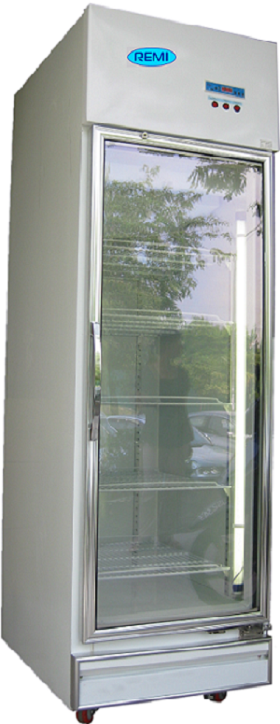

Pharmaceutical Refrigerator N Series (RPR-450N)
Description
Temperature Control
■ Microprocessor control with LED temperature display give a
temperature reading up to 0.1°C.
■ Forced-air circulation system ensuring temperature range of 2°C ~ 8°C.
■ Liquid temperature sensor will minimize the temperature fluctuation.
■ Controller is designed with compressor delay start up, Temperature
off set calibration, Auto defrost.
Safety Control
■ Microprocessor controller can be locked to prevent unauthorized access.
Alarm systems
■ Alarm Buzzer and Temperature Display backup system can last for
at least 48 – 72 hours during power failure if battery is fully charged.
■ The alarm system will alert through buzzer sound or alarm message if
the below conditions occur: Out of range for High and Low alarm setting, Power failure,
Door open more than 5 minutes.
Cooling System
■ High efficient compressor and CFC-FREE refrigerant is used to have fast cooling effects.
■ Quiet running fans and compressors create a very low noise level (± 50 dBA)
■ Forced-Air circulation system ensuring superior temperature uniformity.
Ergonomic Design
■ Automatic cycle defrost ensure no rise in cabinet temperature when doing defrosting.
■ The double glass doors give a comprehensive view for the storage samples.
■ Safety door lock is designed to prevent accidental or unauthorized access.
■ Built in ELCB Circuit Breaker.
■ Heating coil give automatic evaporating off the condensate water.
■ Four caster wheels provide easy moving capability of the cabinet.
■ Remote alarm contact provided as standard for central monitoring alarm system.
Optional Accessories
■ Stainless Steel Cabinets: “IS”-Interior Stainless steel,
“FS”- Interior and Exterior Stainless Steel
■ Chart recorder for monitoring temperature of products.
■ Temperature logger for monitoring temperature under ISO purposes.
■ Auto Dialer-GSM remote monitoring system that can send SMS to
user hand phone if having alarm alert.
■ Traceable® Refrigerator/Freezer Thermometer is an
optional temperature monitoring system
Specifications
- Air Circulation
- Forced air circulation fan
- Alarm conditions
- High & Low alarm , Door open, Power failure
- Alarm system
- Audible and Visual alarms with battery back-up. With remote alarm contact
- Body construction
- Epoxy coated mild steel
- Capacity
- 444 Litres
- Certificate
- ISO13485, MDA Approval Manufacturer
- Chamber dim
- 520W x 595D x 1435H(mm)
- Compressor power
- 3/8hp
- Controls panel
- Touch-pad icon based controls & display
- Cooling capacity
- at 5°C (Btu/hr) 2465
- Defrost
- Automatic cycle defrost
- Door
- 1 Swing out heated glass door
- Door Lock
- 1 unit of door lock with keys
- Indicating lamp
- Fluorescent lamp
- Noise Level
- 55dBA
- Overall dim
- 635W x 760D x 2060H(mm)
- Power supply
- 240VAC, 50Hz single phase
- Rated Load Amps
- Power Input 3.5A; 760W
- Refrigerant
- R134a, CFC FREE
- Refrigeration compressor
- Reciprocating Hermetic seal type
- Shelves
- 5 pcs Epoxy coated Shelves
- Temp. Fluctuation
- ±1.0°C
- Temp. setting & display
- LED Digital display to 0.1°C
- Temp. working range
- 2°c to 8°C (Preset at 4°C)
- Weight
- 101kg
