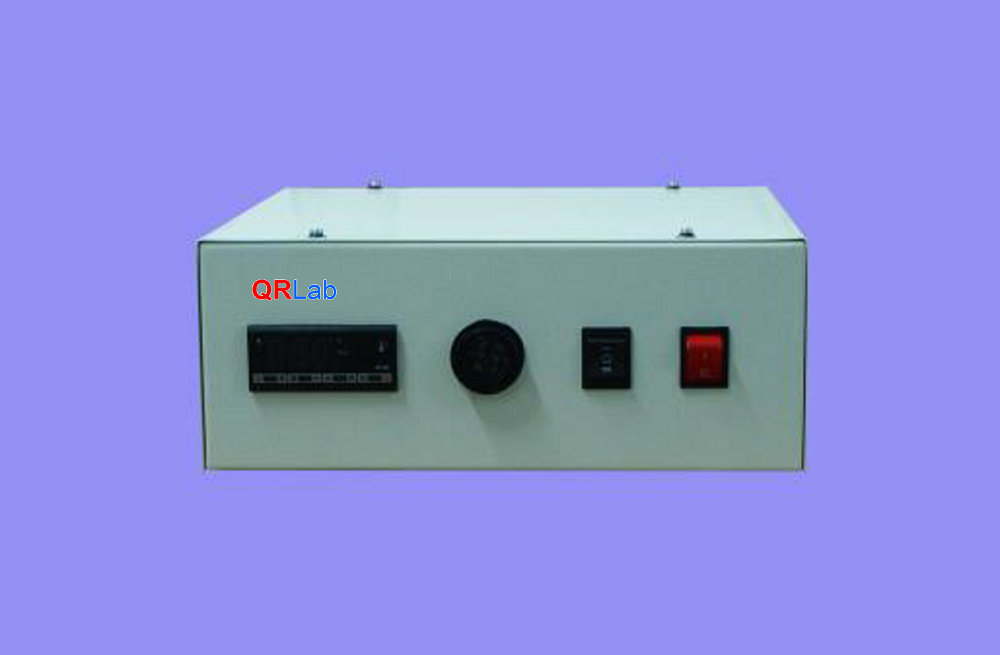

Temperature Alarm Monitoring System (QTM)
Description
Features
■ QTM Temperature Monitoring System allows the user to pre-set a temperature range and receive
an alert if the current temperature exceeds the pre-set range.
■ The operation temperature sensor can be adjusted from -86°C to 100°C (QTM-1)
and the unit can be set to alarm on over temperature or under temperature.
■ In case of power failure, the system will integrate with 12V backup battery to remain the function of
temperature monitoring up to 48hours.
Specifications
- Alarm Condition
- High-Alarm, Low-Alarm, A.C Failure
- Backup Battery
- 12V 4.5AH
- Controller
- PID controller
- Dimensions
- 310mm(W) X 320mm(D) X 130mm(H)
- Optional
- GSM Remote Alarm System
- Out puts
- - Ancillary Output (GSM)
- Remote Alarm Contact - Power consumption
- 50W
- Sensor
- SN 4
- Setting & display
- Digital, display to 1°C
- Temp.Range (Operation)
- -35°C to 70°C
- Temp.Range (sensor)
- -40°C to 125°C
- Voltage
- 240 VAC, 50Hz
- Weight
- 5 kg
