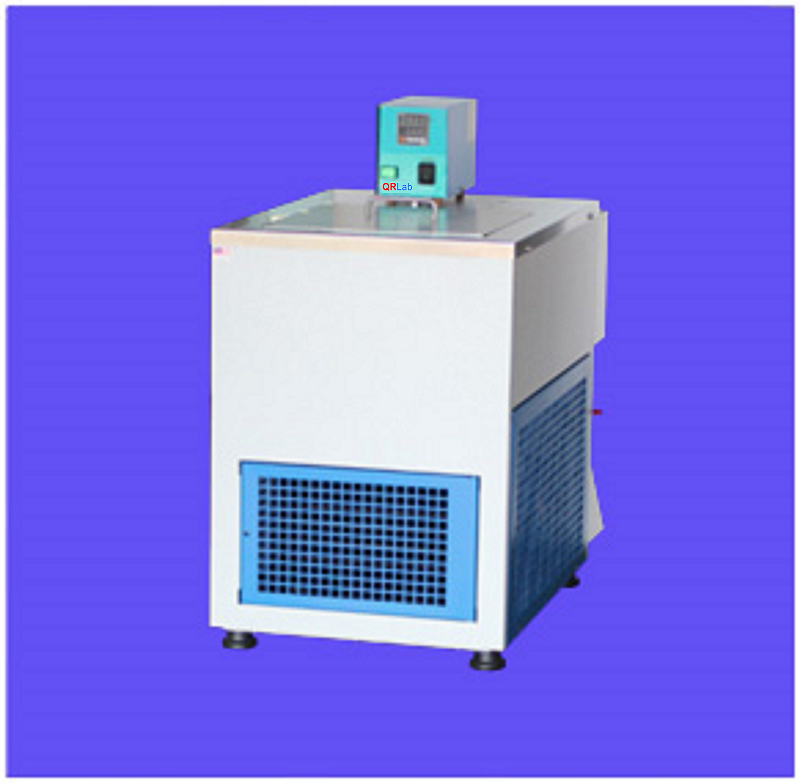

Refrigerated Bath Circulators (RB-2)
Description
Features
■ Microprocessor PID controller which provides exact temperature setting and operations.
■ Digital LED Display to 0.1°C shows both setting temperature and actual temperature.
■ Back-up memory system protects the setting temperature value when power failure.
■ Automatic diagnostic system can identify and make correction if controller is in error.
■ Off set function is important for calibration purpose.
■ The immersed parts of the circulators are made of stainless steel.
■ Compressor with overload protection.
■ Inlet and outlet nozzles can let external circulation.
■ Circuit breaker is built in for both heater and refrigerator to ensure safe and
lasting operation.
■ Standard unit is supplied with 2 meter power cord with grounded plug.
Specifications
- Bath capacity
- 16 litres
- Bath construction
- (Interior) Interior SUS 304 stainless steel
- Bath construction
- (Exterior) Powder coated mild steel
- Bath dimensions
- 273W x 400D x 155H(mm)
- Compressor
- ¼ Hp
- Controller
- PID controller
- External Circular
- External circulation by liquid transfer pump
- Flow Rate
- 8 litres/min
- Heater
- 1500 Watts
- Lid opening area
- 200Wx200D (mm)
- Outlet & inlet
- 8mm diameter
- Overall dimensions
- 415Wx620Dx745H (mm)
- Power supply
- 240VAC, 50Hz
- Rated Amp
- 9.4A
- Refrigerant
- CFC-Free, R-134A
- Safety devices
- ELCB circuit breaker for heater and refrigerator, built-in protection for compressor
- Stirring
- Built in Circulating pump
- Temp. Setting & Display
- Digital setting and display to 0.1°C
- Temp.working range
- -20°C to 100°C
- Temperature accuracy
- ±0.1°C
- Temperature sensor
- PT-100
- Weight
- 55 kg
