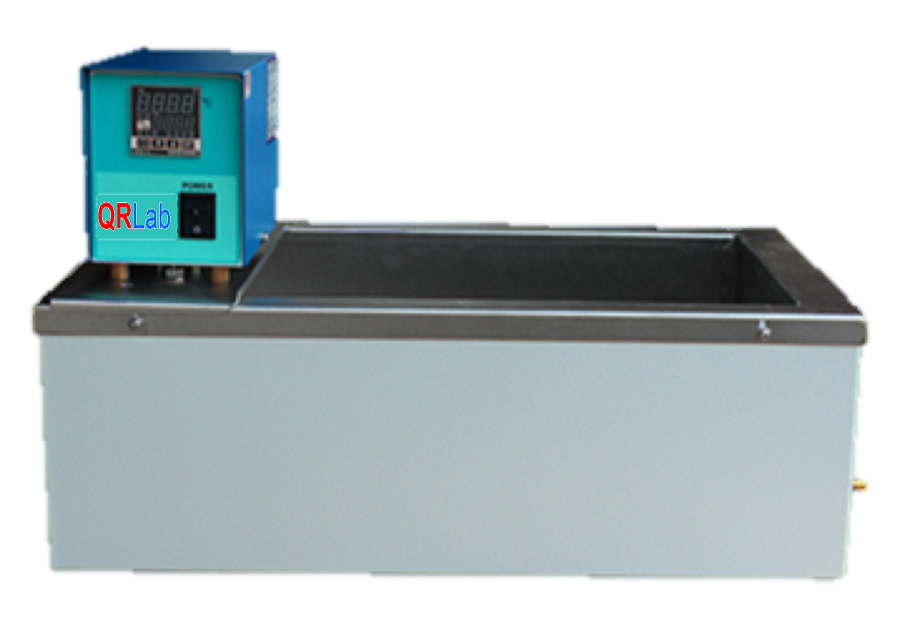

Digital Heating Circulation Water Bath (QHC-5)
Description
FEATURES
■ Microprocessor PID controller which provides exact temperature setting and operations.
■ Digital LED Display to 0.1°C shows both setting temperature and actual temperature.
■ Back-up memory system protects the setting temperature value when power failure.
■ Automatic diagnostic system can identify and make correction if controller is in error.
■ Off set function is important for calibration purpose.
■ The immersed parts of the circulators are made of stainless steel.
■ The circulators are designed and constructed for continuous operation.
■ Temperature uniformity of the circulators are ensured by stirring motors.
■ Inlet and outlet nozzles can let external circulation of hot fluid.
■ Circuit breaker is built in to ensure safe and lasting operation.
■ Standard unit is supplied with 2 meter power cord with grounded plug
Specifications
- Bath capacity
- 20 litres
- Bath construction (Exterior)
- Powder coated mild steel
- Bath construction (Interior)
- Interior SUS 304 stainless steel
- Controller
- PID controller
- Dimensions (Bath)
- 285W x 480D x 155H(mm)
- Dimensions (Overall)
- 610W x 355D x 350H(mm)
- Heater
- 1500 Watts
- Lid opening area
- 230W x 230D(mm)
- Power supply
- 240VAC, 50Hz, 6.1A
- Safety devices
- ELCB circuit breaker as standard
- Stirring
- Built in Circulating pump
- Temp.control range
- 0°C to 150°C. Below ambient with external cooler
- Temp.setting & Display
- Digital setting and display to 0.1°C
- Temp.working range
- 5°C above ambient temperature to 150°C
- Temperature accuracy
- ±0.1°C
- Temperature sensor
- PT-100
- Weight
- 13.9 kg
