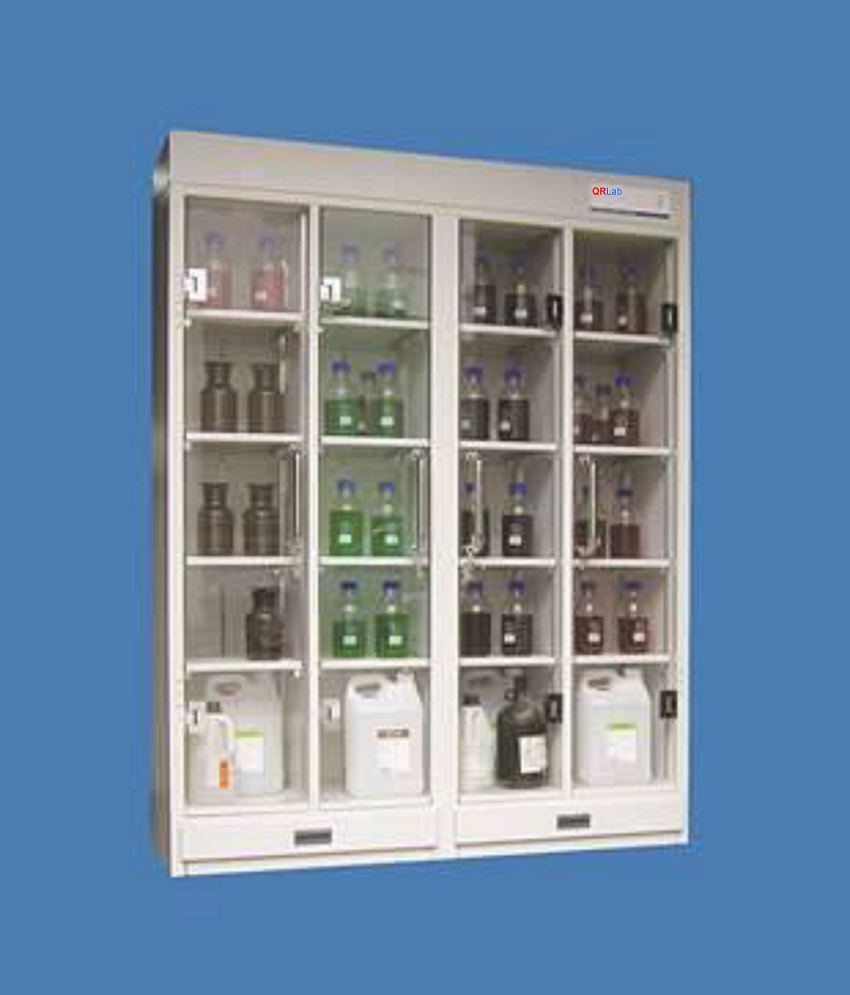

Chemical Storage Cabinets (QCS-200C)
Description
Two type of systems:
■ Ducting system with exhaust fan to eliminates the noxious vapor,
Model: QCS-100, QCS-100C, QCS-200, QCS-200C.
■ Filter system to filter out different types of gases for examples:
acidic gases, ammonia, formaldehyde, Sulphur dioxide, and etc.…….,
Accessories: Venticap Filtration Box.
Features
■ Cabinet body and shelves constructed of heavy gauge mild steel plate with
anti-corrosive epoxy coated paint.
■ Doors are constructed of Poly(Methyl methacrylate) (PMMA) which is a
transparent thermoplastic, often used as a lightweight or shatter-resistant
alternative to glass. This historically been called acrylic glass will reduce
the burning effect in case of fire.
■ The storage chemicals can be see through via large transparent door which give
a comprehensive full view.
■ Lock and key are to prevent the unauthorized personnel access the storage chemicals.
■ Magnetic labelling tags are provided.
■ Supplied with 4 adjustable shelves for each storage compartment.
■ Supplied with spillage tray and up to 10 meters (3m is standard) of
flexible aluminium ducting host.
■ Exhaust fan speed are adjustable.
Specifications
- Cabinets construction
- Powder Coated mild steel
- Capacity
- 200 1L bottles & flasks
- Dimensions (External)
- 1600W x 605D x 2150H(mm)
- Dimensions (Internal)
- 355Wx470Dx1710H(mm)
- Door
- 4 doors
- Ducting host
- diameters 4 inches
- Fan speed
- Adjustable
- Power supply
- 240VAC, 50 Hz, 0.8A
- Shelves
- 16 units Epoxy coated shelves
- Shelves dimensions
- 330Wx415Dx20H(mm)
- Tray capacity
- 2 units of 20 litres (Spillage tray)
- Type
- 4 Compartments
- Ventilation rate
- Up to 550 m3/hr
- Weight
- 345 kg
