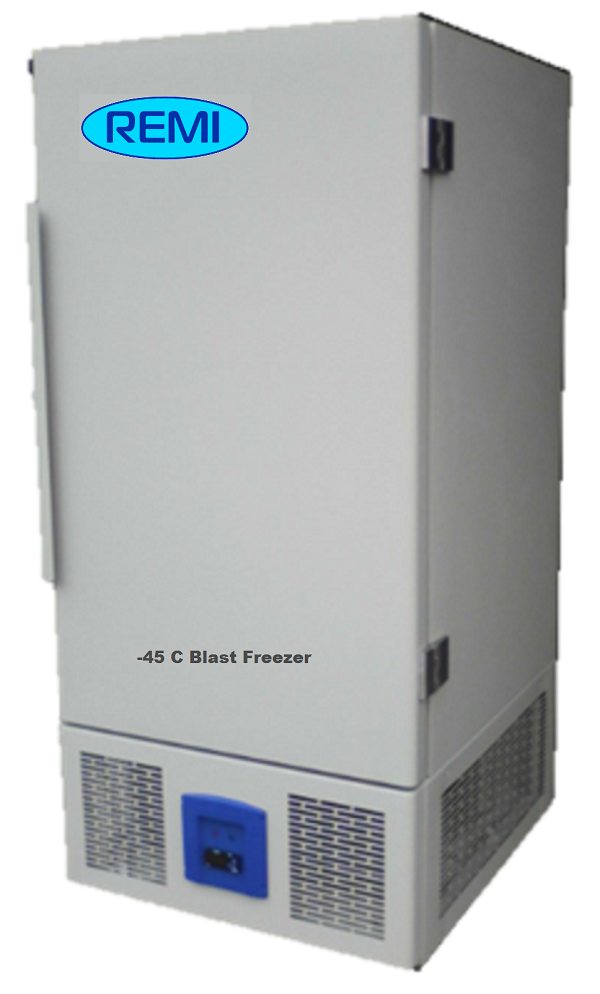

-45°C Blast Freezer (LSD-10)
Description
Cooling system:
■ Two single-stage refrigeration systems, mixed refrigerants, quick cooling,
high efficiency, low noise.
■ Famous brand compressor, fan motor, reliable operation
■ CFC free refrigerants, environmental friendly.
Control system
■ Imported electronic controller, digital display, PT100 sensor,
the temperature control more accurate
■ The temperature inside freezer can be adjusted in the temperature range.
■ High and low temperature alarm and sensor fault alarm for safe operation.
Construction & design
■ Dual gaskets ensure good seal
■ High density extra thick insulation provide good insulation of heat
■ Copper tube evaporator and simple cooling system construction
ensure reliable operation.
■ Casters with lock, easy moving.
Specifications
- (Adjustable)Temp.working range
- -10°C to -45°C (adjustable)
- Alarm conditions
- High & Low alarm, system failure alarm
- Alarm system
- Audible and Visual alarms with battery back-up
- Ambient Temperature
- 16°C to 32°C
- Cabinet construction
- (External) Powder Coated Steel Panel
- Cabinet Construction
- (Internal) Stainless Steel Panel
- Capacity
- 228 litres
- Controls panel/Sensor
- Touch-pad icon based control/ NTC
- Dimensions (External)
- 760W x 820D x 1675H(mm)
- Dimensions (Internal)
- 510W x 440D x 1010H(mm)
- Display & Temp.setting
- Digital Display to 1°C
- Door Lock
- 1 unit of door lock with key
- Door seal
- Double Door Gaskets
- Empty cooling speed
- From +25°C to -45°C within 30 minutes
- Foam Insulation
- Thickness of 125 mm thick CFC-free Urethane
- Frozen speed with loads
- 1 hour (loads: 10 kg)

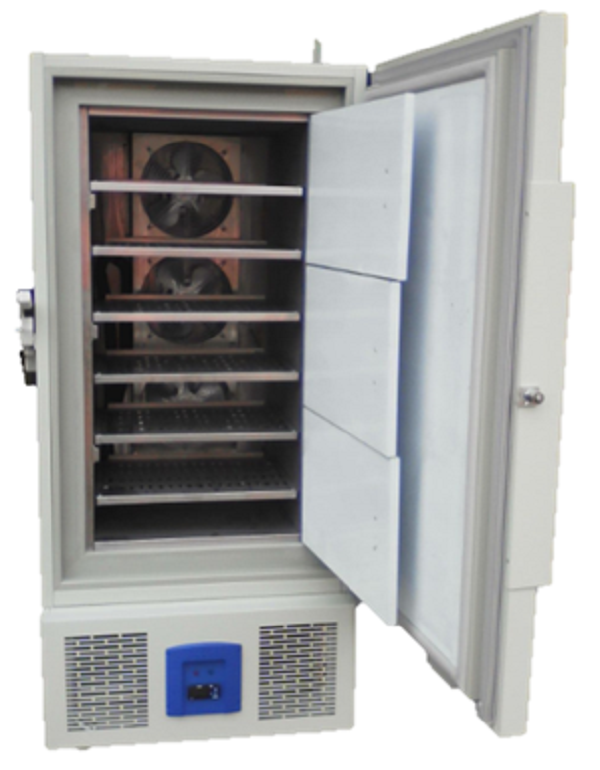

- Inner Door
- 3 Stainless Steel Inner Doors
- Outer Door
- Single Foamed Swing Door
- Power Input
- 1500 Watts
- Power Supply
- 220V/50Hz
- Quantity of pan
- 6 pcs
- Refrigerant
- Mixed CFC refrigerants
- Size of pan
- 500D x 350W x 20H(mm)
- Standard & Certificate
- ISO9001, ISO13485
- Weight
- (Net/gross) 200/230 kg
