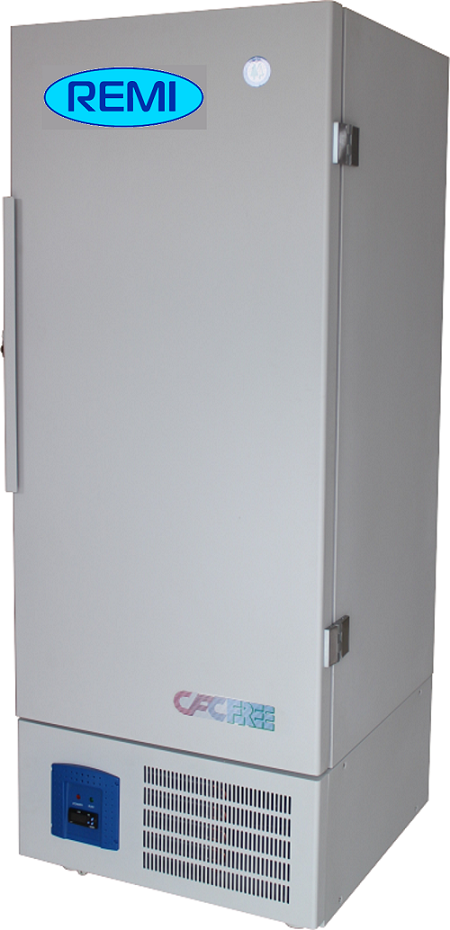

-65°C Low Temperature Frezer Upright Type (DW-65L328)
Description
Temperature Control
■ Microprocessor control, digital display to 0.1°C resolution;
temperature is adjustable from -25°C to -65°C.
Safety Control
■ Power-on delay function, off-cycle protection is to
ensure the security of the compressor.
Alarm System
■ Audible and Visual alarm in two alarming methods:
Buzzer alarming and digital flashing alarming.
■ Alarm conditions included High and Low limit
Alarm, sensor malfunction alarm, Power Failure Alarm (Optional)
Cooling System
■ Fast cooling system is generated by imported
compressor and EBM fan motor.
■ Strong cooling system is generated by copper tube
evaporator and condensing system.
Ergonomic Design
■ Single stage refrigeration technology & design, strong
Cooling and quick freezing.
■ Outer and inner doors, double gaskets and extra thickness of
Insulation ensure reliable operation and safety of sample storage.
■ Dynamic handle provides strong locking and easy door opening.
■ Casters wheels with lock, is design for easy moving.
Specifications
- (Adjustable) Temp.working range
- -25°C to -65°C (adjustable)
- Alarm conditions
- High & Low alarm, Sensor Error, Power Failure alarm(Optional)
- Alarm system
- Audible and Visual alarms with battery back-up
- Cabinet construction
- (External) Powder Coated Steel Sheet
- Cabinet Construction
- (Internal) Stainless Steel Sheet
- Capacity
- 328 litres
- Condenser
- Fan cooling fin type
- Dimensions (External)
- 760W x 765D x 1975H(mm)
- Dimensions (Internal)
- 500W x 500D x 1300H(mm)
- Display & Temp. Setting
- Digital Display to 0.1°C
- Door (Outer)
- Stainless Steel Door
- Door/Door Lock
- Double Gasket Formed door/ 1 unit of door lock with key
- Evaporator
- Copper coil
- Foam Insulation
- 130 mm thick CFC-free Urethane
- Power consumption
- 6.5kW.h/24h
- Power Input
- 500W
- Power supply
- 220-240 Vac, 50 Hz, Single phase
- Refrigerant
- Mixed CFC FREE Refrigerants
- Shelves
- 3 Stainless Steel Shelves
- Standard & Certificate
- ISO13485
- Temperature Sensor
- NTC
- Weight
- 170/190kg
- Wheels
- 4 pcs caster wheels
